SDO HMI 2014-09-03 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 81.85 | 11.10 | 48.81 | -17.84 | 158.82 | -22.90 | 138.26 | 0.5580 | 263.4 | 69.5 | |
|
previous
or next observation for the same group /

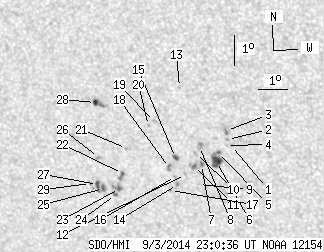

back to the solar disc SDO HMI 2014-09-03 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.62 | -17.23 | 161.33 | -20.38 | 140.71 | 0.5274 | 576.0 | 516.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -17.03 | 161.22 | -20.50 | 140.31 | 0.5263 | 804.0 | 713.6 | |
| 0.00 | 3.22 | 0.00 | 1.87 | -16.74 | 161.22 | -20.50 | 139.93 | 0.5230 | 477.0 | 577.3 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.24 | 161.16 | -20.55 | 140.49 | 0.5291 | 658.0 | 518.6 | |
| 0.63 | 13.23 | 0.37 | 7.76 | -17.48 | 160.86 | -20.86 | 140.39 | 0.5347 | 719.0 | 698.0 | |
| 7.15 | -5.00 | 4.20 | -5.00 | -17.79 | 160.76 | -20.96 | 140.63 | 0.5390 | 918.2 | 999999 | |
| 0.54 | 7.51 | 0.32 | 4.44 | -17.91 | 160.23 | -21.49 | 140.09 | 0.5453 | 853.5 | 616.9 | |
| 0.00 | 3.93 | 0.00 | 2.31 | -17.31 | 160.24 | -21.48 | 139.35 | 0.5387 | 724.0 | 703.0 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -18.59 | 160.04 | -21.68 | 140.66 | 0.5545 | 679.0 | 587.4 | |
| 0.00 | 1.88 | 0.00 | 1.11 | -17.55 | 160.07 | -21.65 | 139.43 | 0.5429 | 374.0 | 430.2 | |
| 0.89 | -7.00 | 0.53 | -7.00 | -17.99 | 159.95 | -21.77 | 139.82 | 0.5489 | 825.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -18.28 | 159.63 | -22.08 | 139.76 | 0.5548 | 482.0 | 462.6 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.39 | 159.79 | -21.93 | 136.24 | 0.5226 | 660.0 | 575.3 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -18.63 | 159.31 | -22.41 | 139.78 | 0.5616 | 690.0 | 588.8 | |
| 1.43 | 2.77 | 0.85 | 1.64 | -17.72 | 159.36 | -22.35 | 138.74 | 0.5515 | 828.1 | 677.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.36 | 159.28 | -22.44 | 139.42 | 0.5591 | 200.0 | 333.0 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -18.84 | 159.04 | -22.68 | 139.70 | 0.5664 | 493.0 | 473.1 | |
| 0.00 | 3.04 | 0.00 | 1.81 | -18.07 | 159.11 | -22.61 | 138.85 | 0.5575 | 727.0 | 620.7 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -16.56 | 158.80 | -22.92 | 136.54 | 0.5448 | 724.0 | 492.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -16.70 | 158.57 | -23.15 | 136.45 | 0.5486 | 539.0 | 445.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -17.51 | 157.70 | -24.02 | 136.44 | 0.5654 | -457.0 | -518.8 | |
| 0.80 | 13.76 | 0.49 | 8.37 | -18.36 | 157.44 | -24.28 | 137.19 | 0.5765 | -896.6 | -742.4 | |
| 1.25 | -22.00 | 0.76 | -22.00 | -18.87 | 157.25 | -24.47 | 137.61 | 0.5835 | -974.1 | 999999 | |
| 0.80 | -22.00 | 0.49 | -22.00 | -19.08 | 157.08 | -24.64 | 137.66 | 0.5872 | -696.7 | 999999 | |
| 1.25 | 9.03 | 0.77 | 5.53 | -18.90 | 156.68 | -25.03 | 137.00 | 0.5892 | -855.5 | -595.8 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -17.86 | 156.67 | -25.05 | 135.70 | 0.5791 | -731.0 | -648.5 | |
| 1.79 | -25.00 | 1.09 | -25.00 | -18.78 | 156.49 | -25.23 | 136.63 | 0.5898 | -892.2 | 999999 | |
| 2.06 | 7.06 | 1.23 | 4.21 | -16.04 | 156.83 | -24.89 | 133.50 | 0.5598 | -574.8 | -695.3 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -18.76 | 156.25 | -25.47 | 136.34 | 0.5920 | -558.0 | -535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
