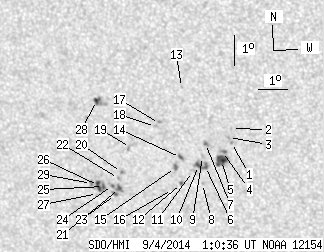

SDO HMI 2014-09-04 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 79.84 | 13.87 | 47.31 | -17.93 | 158.62 | -21.99 | 139.52 | 0.5504 | 192.5 | -20.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.15 | 161.25 | -19.37 | 142.04 | 0.5172 | 740.0 | 676.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -16.69 | 161.30 | -19.32 | 141.53 | 0.5113 | 603.0 | 366.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.99 | 161.17 | -19.45 | 141.72 | 0.5161 | 739.0 | 606.3 | |
| 0.00 | 2.41 | 0.00 | 1.40 | -17.46 | 160.91 | -19.70 | 141.95 | 0.5239 | 890.0 | 711.1 | |
| 7.60 | 10.55 | 4.43 | 6.14 | -17.77 | 160.84 | -19.77 | 142.22 | 0.5280 | 910.2 | 685.3 | |
| 1.52 | 10.73 | 0.89 | 6.29 | -17.99 | 160.27 | -20.34 | 141.71 | 0.5357 | 863.9 | 605.0 | |
| 0.36 | 2.15 | 0.21 | 1.25 | -17.22 | 160.37 | -20.25 | 140.89 | 0.5262 | 911.2 | 763.5 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -18.57 | 160.10 | -20.52 | 142.17 | 0.5438 | 491.0 | 454.9 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -17.66 | 160.21 | -20.40 | 141.22 | 0.5325 | 638.0 | 440.2 | |
| 2.06 | -6.00 | 1.21 | -6.00 | -17.97 | 160.04 | -20.58 | 141.37 | 0.5376 | 822.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -18.18 | 159.81 | -20.81 | 141.31 | 0.5420 | 590.0 | 469.2 | |
| 0.63 | 1.88 | 0.37 | 1.11 | -18.60 | 159.38 | -21.24 | 141.25 | 0.5506 | 584.6 | 435.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -15.41 | 159.76 | -20.86 | 137.69 | 0.5119 | 713.0 | 494.4 | |
| 0.89 | 1.97 | 0.53 | 1.16 | -17.73 | 159.46 | -21.16 | 140.30 | 0.5403 | 699.2 | 636.4 | |
| 0.89 | 3.49 | 0.53 | 2.06 | -18.07 | 159.24 | -21.37 | 140.44 | 0.5461 | 761.8 | 581.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -18.82 | 159.04 | -21.58 | 141.07 | 0.5561 | 490.0 | 470.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -16.63 | 158.88 | -21.74 | 138.14 | 0.5339 | 815.0 | 811.8 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -16.74 | 158.73 | -21.89 | 138.09 | 0.5365 | 762.0 | 528.2 | |
| 0.00 | 2.95 | 0.00 | 1.75 | -17.48 | 157.78 | -22.84 | 137.83 | 0.5536 | -716.0 | -566.1 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -18.34 | 157.35 | -23.27 | 138.37 | 0.5667 | -858.0 | -710.6 | |
| 1.52 | 10.82 | 0.92 | 6.54 | -18.88 | 157.20 | -23.42 | 138.86 | 0.5738 | -1022.6 | -767.1 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -18.54 | 157.21 | -23.40 | 138.47 | 0.5701 | -709.0 | -629.0 | |
| 0.72 | -21.00 | 0.43 | -21.00 | -19.09 | 157.03 | -23.59 | 138.90 | 0.5775 | -760.8 | 999999 | |
| 0.45 | -21.00 | 0.27 | -21.00 | -18.79 | 156.97 | -23.65 | 138.47 | 0.5750 | -879.4 | 999999 | |
| 1.07 | 9.56 | 0.65 | 5.80 | -18.84 | 156.64 | -23.97 | 138.15 | 0.5786 | -900.8 | -612.6 | |
| 3.13 | -25.00 | 1.90 | -25.00 | -18.82 | 156.47 | -24.14 | 137.92 | 0.5799 | -824.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -19.09 | 156.39 | -24.22 | 138.16 | 0.5835 | -108.0 | -315.9 | |
| 2.59 | 7.87 | 1.53 | 4.65 | -15.98 | 156.80 | -23.81 | 134.69 | 0.5481 | -675.8 | -638.3 | |
| 0.00 | 2.15 | 0.00 | 1.30 | -18.76 | 156.24 | -24.38 | 137.58 | 0.5816 | -701.0 | -574.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
