SDO HMI 2014-09-04 01:00:36 UT

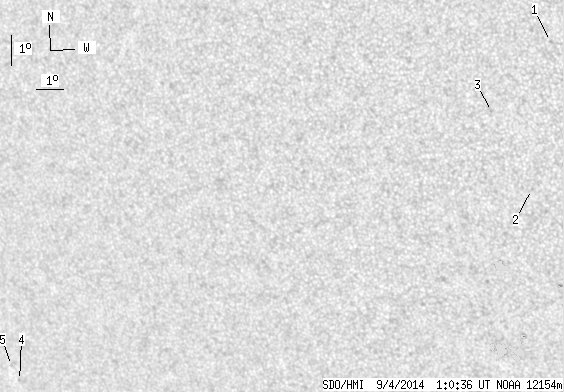

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.82 | 0.00 | 3.15 | -15.70 | 148.30 | -32.31 | 126.86 | 0.6235 | 249.2 | 108.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.69 | -8.71 | 159.26 | -21.35 | 126.49 | 0.4495 | 723.0 | 594.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -13.46 | 158.25 | -22.37 | 132.93 | 0.5075 | 715.0 | 535.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -11.02 | 157.13 | -23.48 | 127.77 | 0.4968 | 607.0 | 466.5 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -21.28 | 137.14 | -43.48 | 124.78 | 0.7829 | -249.0 | -292.9 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -20.79 | 136.96 | -43.66 | 124.12 | 0.7819 | -550.0 | -492.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
