SDO HMI 2014-09-04 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.93 | 725.78 | 105.18 | 437.66 | -14.96 | 206.66 | 26.59 | 229.44 | 0.5697 | 11.4 | 70.3 | |
|
previous
or next observation for the same group /

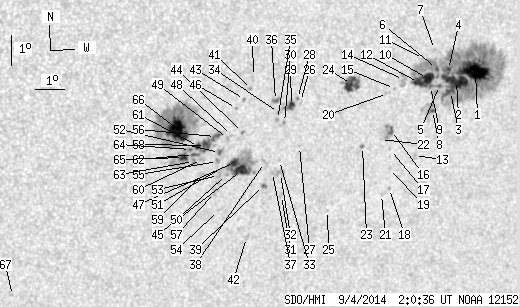

back to the solar disc SDO HMI 2014-09-04 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.18 | 357.40 | 20.05 | 221.70 | -14.07 | 210.98 | 30.91 | 235.23 | 0.6089 | 1070.2 | 403.1 | |
| 23.24 | -1.00 | 14.41 | -1.00 | -14.34 | 210.33 | 30.26 | 234.27 | 0.6037 | 956.6 | 999999 | |
| 3.31 | -1.00 | 2.05 | -1.00 | -14.66 | 210.16 | 30.09 | 233.68 | 0.6042 | 793.9 | 999999 | |
| 1.70 | -1.00 | 1.05 | -1.00 | -13.93 | 209.98 | 29.91 | 234.53 | 0.5965 | 1032.3 | 999999 | |
| 1.25 | -1.00 | 0.77 | -1.00 | -14.43 | 209.73 | 29.66 | 233.60 | 0.5976 | 839.1 | 999999 | |
| 1.34 | -1.00 | 0.82 | -1.00 | -13.87 | 209.54 | 29.47 | 234.21 | 0.5910 | 850.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -13.25 | 209.38 | 29.32 | 234.95 | 0.5844 | 663.0 | 505.5 | |
| 1.25 | 11.00 | 0.78 | 6.80 | -15.24 | 209.60 | 29.53 | 232.38 | 0.6026 | 756.0 | 490.1 | |
| 0.89 | -1.00 | 0.55 | -1.00 | -14.45 | 209.41 | 29.34 | 233.29 | 0.5941 | 738.8 | 999999 | |
| 11.44 | -1.00 | 7.01 | -1.00 | -14.18 | 209.26 | 29.19 | 233.52 | 0.5903 | 1064.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -13.51 | 209.03 | 28.96 | 234.24 | 0.5824 | 281.0 | 243.6 | |
| 7.24 | -1.00 | 4.43 | -1.00 | -14.29 | 208.95 | 28.89 | 233.08 | 0.5877 | 834.1 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.62 | -16.69 | 209.18 | 29.11 | 230.05 | 0.6101 | 530.0 | 473.6 | |
| 0.00 | 7.69 | 0.00 | 4.67 | -14.15 | 208.40 | 28.33 | 232.74 | 0.5804 | 556.0 | 614.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -14.43 | 208.12 | 28.05 | 232.08 | 0.5796 | 492.0 | 423.5 | |
| 2.41 | 9.83 | 1.48 | 6.03 | -15.80 | 208.21 | 28.14 | 230.28 | 0.5923 | 858.3 | 610.8 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -16.43 | 208.27 | 28.21 | 229.51 | 0.5983 | 651.0 | 471.7 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -17.73 | 208.45 | 28.38 | 228.00 | 0.6115 | 534.0 | 483.4 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -17.06 | 208.34 | 28.27 | 228.75 | 0.6045 | 400.0 | 460.2 | |
| 0.00 | 1.88 | 0.00 | 1.14 | -14.57 | 207.89 | 27.83 | 231.64 | 0.5783 | 111.0 | 184.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -17.91 | 208.19 | 28.13 | 227.51 | 0.6105 | 461.0 | 431.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -16.07 | 207.86 | 27.79 | 229.56 | 0.5909 | -301.0 | -275.0 | |
| 0.54 | 1.79 | 0.33 | 1.09 | -16.27 | 207.25 | 27.18 | 228.68 | 0.5861 | -389.5 | -374.4 | |
| 13.77 | 20.47 | 8.22 | 12.22 | -14.20 | 206.58 | 26.51 | 230.82 | 0.5604 | -842.4 | -552.7 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -18.33 | 206.33 | 26.26 | 225.05 | 0.5957 | 325.0 | 318.8 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -14.65 | 204.87 | 24.80 | 228.29 | 0.5457 | 298.0 | 320.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.13 | 205.02 | 24.95 | 226.44 | 0.5614 | -556.0 | -439.0 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -14.55 | 204.75 | 24.68 | 228.31 | 0.5434 | 743.0 | 637.5 | |
| 3.84 | 8.94 | 2.26 | 5.27 | -14.77 | 204.57 | 24.50 | 227.79 | 0.5435 | 861.4 | 542.7 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -15.31 | 204.39 | 24.33 | 226.83 | 0.5469 | 634.0 | 471.9 | |
| 0.00 | 2.59 | 0.00 | 1.56 | -17.73 | 204.61 | 24.55 | 223.90 | 0.5729 | -615.0 | -395.6 | |
| 0.00 | 4.47 | 0.00 | 2.68 | -16.99 | 204.48 | 24.41 | 224.68 | 0.5642 | -652.0 | -558.3 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -16.56 | 204.38 | 24.31 | 225.14 | 0.5590 | -407.0 | -312.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.97 | 204.15 | 24.08 | 227.01 | 0.5409 | 670.0 | 510.5 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -15.20 | 204.14 | 24.07 | 226.69 | 0.5431 | 569.0 | 522.2 | |
| 1.07 | 4.20 | 0.63 | 2.46 | -14.57 | 204.00 | 23.93 | 227.39 | 0.5355 | 858.2 | 700.7 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -16.94 | 204.19 | 24.12 | 224.41 | 0.5608 | -637.0 | -578.8 | |
| 0.00 | 4.02 | 0.00 | 2.39 | -16.59 | 203.87 | 23.80 | 224.48 | 0.5541 | -248.0 | -95.8 | |
| 0.89 | 2.59 | 0.53 | 1.55 | -17.36 | 203.94 | 23.87 | 223.57 | 0.5625 | -622.0 | -519.5 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -13.75 | 203.16 | 23.09 | 227.56 | 0.5183 | -706.0 | -693.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -14.17 | 203.13 | 23.07 | 226.92 | 0.5222 | -719.0 | -657.0 | |
| 0.00 | 2.68 | 0.00 | 1.62 | -19.08 | 203.59 | 23.52 | 221.03 | 0.5768 | -487.0 | -346.1 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -14.48 | 202.93 | 22.86 | 226.22 | 0.5231 | -562.0 | -456.1 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -15.56 | 202.98 | 22.92 | 224.79 | 0.5346 | -474.0 | -459.6 | |
| 10.55 | 48.90 | 6.24 | 28.88 | -16.82 | 203.10 | 23.04 | 223.26 | 0.5487 | -861.6 | -389.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -14.76 | 202.69 | 22.62 | 225.52 | 0.5234 | -685.0 | -569.3 | |
| 5.45 | -45.00 | 3.21 | -45.00 | -16.54 | 202.83 | 22.76 | 223.29 | 0.5431 | -997.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -15.64 | 202.62 | 22.55 | 224.22 | 0.5316 | 84.0 | 85.7 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -15.73 | 202.49 | 22.43 | 223.94 | 0.5313 | -206.0 | -227.5 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -16.92 | 202.60 | 22.54 | 222.50 | 0.5448 | -701.0 | -704.9 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -16.68 | 202.44 | 22.37 | 222.60 | 0.5407 | -171.0 | -214.8 | |
| 1.16 | 3.13 | 0.68 | 1.83 | -16.18 | 202.27 | 22.21 | 223.06 | 0.5338 | -769.0 | -444.7 | |
| 0.00 | 3.58 | 0.00 | 2.11 | -16.94 | 202.33 | 22.26 | 222.13 | 0.5424 | -643.0 | -704.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -18.11 | 202.48 | 22.42 | 220.85 | 0.5562 | -369.0 | -440.1 | |
| 0.00 | 2.32 | 0.00 | 1.36 | -16.47 | 202.24 | 22.17 | 222.62 | 0.5365 | -928.0 | -636.8 | |
| 3.13 | 47.47 | 1.82 | 27.57 | -15.64 | 202.08 | 22.01 | 223.52 | 0.5261 | -534.9 | -600.0 | |
| 0.00 | 4.02 | 0.00 | 2.38 | -17.50 | 202.27 | 22.20 | 221.34 | 0.5477 | -656.0 | -491.8 | |
| 6.97 | -56.00 | 4.06 | -56.00 | -15.92 | 201.77 | 21.70 | 222.74 | 0.5260 | -825.4 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.68 | -16.88 | 201.78 | 21.71 | 221.50 | 0.5363 | -322.0 | -286.6 | |
| 0.00 | 1.88 | 0.00 | 1.10 | -16.38 | 201.69 | 21.62 | 222.03 | 0.5300 | -599.0 | -528.3 | |
| 2.95 | -56.00 | 1.71 | -56.00 | -15.94 | 201.53 | 21.47 | 222.40 | 0.5239 | -938.0 | 999999 | |
| 1.25 | -56.00 | 0.73 | -56.00 | -16.20 | 201.39 | 21.33 | 221.88 | 0.5252 | -907.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -16.43 | 201.42 | 21.35 | 221.61 | 0.5280 | -834.0 | -674.3 | |
| 0.63 | -56.00 | 0.36 | -56.00 | -16.03 | 201.27 | 21.21 | 221.94 | 0.5222 | -905.4 | 999999 | |
| 4.83 | -56.00 | 2.80 | -56.00 | -16.28 | 201.06 | 21.00 | 221.33 | 0.5229 | -993.0 | 999999 | |
| 31.65 | 138.74 | 18.20 | 79.66 | -15.35 | 200.76 | 20.70 | 222.17 | 0.5097 | -1151.3 | -471.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -20.68 | 195.80 | 15.73 | 208.67 | 0.5307 | -613.0 | -614.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
