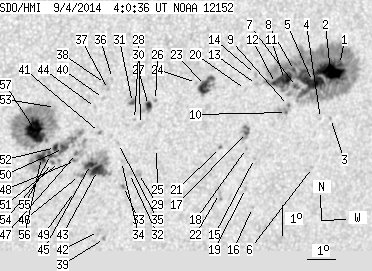

SDO HMI 2014-09-04 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.54 | 727.45 | 93.64 | 442.82 | -14.94 | 206.62 | 27.65 | 230.57 | 0.5810 | -1.5 | 94.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 361.77 | 1.19 | 226.86 | -13.84 | 211.24 | 32.27 | 236.68 | 0.6227 | 888.8 | 443.3 | |
| 26.20 | -1.00 | 16.52 | -1.00 | -14.05 | 210.94 | 31.97 | 236.15 | 0.6207 | 1148.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.59 | 211.20 | 32.23 | 234.28 | 0.6349 | 651.0 | 545.7 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -15.57 | 210.82 | 31.85 | 234.00 | 0.6306 | 341.0 | 377.2 | |
| 18.69 | -1.00 | 11.73 | -1.00 | -14.33 | 210.32 | 31.35 | 235.25 | 0.6158 | 985.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -17.18 | 210.82 | 31.85 | 231.91 | 0.6429 | 392.0 | 425.4 | |
| 2.24 | -1.00 | 1.39 | -1.00 | -14.45 | 209.76 | 30.79 | 234.59 | 0.6104 | 926.7 | 999999 | |
| 1.61 | -1.00 | 1.00 | -1.00 | -13.92 | 209.61 | 30.64 | 235.19 | 0.6047 | 987.2 | 999999 | |
| 0.45 | 10.91 | 0.28 | 6.82 | -15.05 | 209.56 | 30.59 | 233.59 | 0.6129 | 927.2 | 556.4 | |
| 0.45 | -9.00 | 0.28 | -9.00 | -15.28 | 209.52 | 30.55 | 233.26 | 0.6142 | 855.4 | 999999 | |
| 15.65 | -1.00 | 9.70 | -1.00 | -14.19 | 209.28 | 30.31 | 234.53 | 0.6031 | 1086.0 | 999999 | |
| 2.95 | -1.00 | 1.82 | -1.00 | -14.30 | 208.97 | 30.00 | 234.10 | 0.6004 | 847.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.04 | -14.29 | 208.29 | 29.32 | 233.49 | 0.5926 | 476.0 | 441.2 | |
| 0.00 | 1.97 | 0.00 | 1.20 | -13.96 | 208.21 | 29.24 | 233.87 | 0.5890 | 824.0 | 661.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -16.73 | 208.60 | 29.63 | 230.49 | 0.6159 | 425.0 | 478.0 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -18.37 | 208.82 | 29.85 | 228.61 | 0.6319 | 346.0 | 322.2 | |
| 1.43 | 10.01 | 0.89 | 6.21 | -15.84 | 208.16 | 29.19 | 231.25 | 0.6039 | 901.3 | 548.3 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -16.37 | 208.25 | 29.28 | 230.63 | 0.6092 | 748.0 | 615.1 | |
| 0.00 | 1.43 | 0.00 | 0.90 | -17.71 | 208.44 | 29.47 | 229.08 | 0.6225 | 601.0 | 506.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -14.42 | 207.91 | 28.94 | 232.95 | 0.5895 | 581.0 | 572.4 | |
| 0.45 | 1.43 | 0.28 | 0.88 | -16.28 | 207.30 | 28.33 | 229.83 | 0.5983 | -395.2 | -393.0 | |
| 0.00 | 5.01 | 0.00 | 3.14 | -17.81 | 207.52 | 28.55 | 228.06 | 0.6139 | 557.0 | 479.6 | |
| 12.25 | 20.21 | 7.38 | 12.18 | -14.20 | 206.46 | 27.50 | 231.84 | 0.5714 | -840.0 | -440.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -14.09 | 206.13 | 27.16 | 231.66 | 0.5667 | -540.0 | -500.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -16.17 | 205.01 | 26.04 | 227.60 | 0.5731 | -519.0 | -457.9 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -14.59 | 204.76 | 25.80 | 229.51 | 0.5559 | 743.0 | 611.9 | |
| 3.67 | 8.40 | 2.18 | 5.00 | -14.74 | 204.54 | 25.57 | 229.05 | 0.5548 | 872.7 | 677.1 | |
| 0.00 | 3.04 | 0.00 | 1.81 | -15.34 | 204.34 | 25.37 | 227.98 | 0.5583 | 533.0 | 434.9 | |
| 0.00 | 4.47 | 0.00 | 2.70 | -16.96 | 204.49 | 25.52 | 225.99 | 0.5752 | -585.0 | -482.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -15.17 | 204.11 | 25.14 | 227.97 | 0.5542 | 360.0 | 396.7 | |
| 1.34 | 3.22 | 0.79 | 1.90 | -14.61 | 203.97 | 25.00 | 228.59 | 0.5474 | 880.7 | 767.4 | |
| 0.00 | 2.95 | 0.00 | 1.78 | -16.94 | 204.18 | 25.21 | 225.66 | 0.5718 | -580.0 | -521.0 | |
| 0.45 | 1.79 | 0.27 | 1.08 | -17.37 | 204.03 | 25.06 | 224.94 | 0.5744 | -501.4 | -463.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -16.53 | 203.84 | 24.87 | 225.82 | 0.5643 | -388.0 | -251.6 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -15.93 | 203.65 | 24.68 | 226.41 | 0.5566 | -367.0 | -124.1 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -13.78 | 203.19 | 24.22 | 228.87 | 0.5310 | -757.0 | -620.2 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -14.13 | 203.09 | 24.12 | 228.25 | 0.5333 | -726.0 | -656.5 | |
| 0.00 | 1.79 | 0.00 | 1.04 | -13.93 | 202.97 | 24.00 | 228.39 | 0.5300 | -702.0 | -598.5 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -19.08 | 203.62 | 24.65 | 222.35 | 0.5873 | -649.0 | -558.7 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -14.42 | 202.95 | 23.98 | 227.68 | 0.5345 | -491.0 | -320.3 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -15.53 | 202.95 | 23.98 | 226.12 | 0.5453 | -602.0 | -523.4 | |
| 0.00 | 3.40 | 0.00 | 2.07 | -18.83 | 203.37 | 24.40 | 222.36 | 0.5825 | -762.0 | -486.3 | |
| 10.28 | 50.16 | 6.13 | 29.86 | -16.78 | 203.04 | 24.07 | 224.56 | 0.5587 | -857.4 | -365.6 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -14.70 | 202.71 | 23.74 | 226.99 | 0.5346 | -819.0 | -560.1 | |
| 5.90 | -43.00 | 3.51 | -43.00 | -16.57 | 202.77 | 23.80 | 224.52 | 0.5538 | -1021.9 | 999999 | |
| 0.00 | 3.93 | 0.00 | 2.34 | -16.91 | 202.43 | 23.46 | 223.66 | 0.5539 | -871.0 | -802.8 | |
| 0.63 | 10.28 | 0.37 | 6.06 | -16.18 | 202.24 | 23.27 | 224.39 | 0.5444 | -829.9 | -365.0 | |
| 0.00 | 1.88 | 0.00 | 1.11 | -16.41 | 202.23 | 23.26 | 224.08 | 0.5467 | -794.0 | -667.0 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.44 | 202.33 | 23.36 | 222.87 | 0.5583 | -299.0 | -454.1 | |
| 4.83 | 49.36 | 2.83 | 28.91 | -15.99 | 201.77 | 22.80 | 224.06 | 0.5377 | -833.5 | -500.8 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -16.44 | 201.69 | 22.72 | 223.36 | 0.5416 | -652.0 | -521.5 | |
| 2.95 | -50.00 | 1.73 | -50.00 | -15.94 | 201.49 | 22.52 | 223.78 | 0.5344 | -957.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -14.62 | 201.34 | 22.37 | 225.40 | 0.5193 | -78.0 | -73.4 | |
| 0.63 | 1.70 | 0.37 | 1.00 | -16.43 | 201.45 | 22.48 | 223.07 | 0.5391 | -734.9 | -631.8 | |
| 2.68 | -50.00 | 1.57 | -50.00 | -16.16 | 201.35 | 22.38 | 223.30 | 0.5353 | -1005.2 | 999999 | |
| 6.35 | -50.00 | 3.71 | -50.00 | -16.25 | 201.05 | 22.08 | 222.81 | 0.5332 | -955.6 | 999999 | |
| 30.58 | 143.06 | 17.72 | 82.76 | -15.34 | 200.74 | 21.77 | 223.62 | 0.5206 | -1170.4 | -482.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
