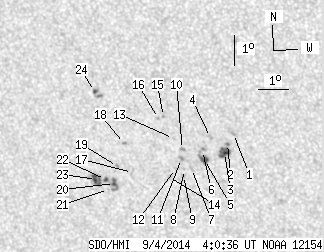

SDO HMI 2014-09-04 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.12 | 74.04 | 11.82 | 43.40 | -18.04 | 158.66 | -20.31 | 141.89 | 0.5361 | 166.6 | 7.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.23 | -17.08 | 161.34 | -17.63 | 144.52 | 0.5008 | 634.0 | 692.9 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -17.42 | 161.10 | -17.87 | 144.57 | 0.5070 | 679.0 | 638.1 | |
| 6.35 | 9.75 | 3.66 | 5.61 | -17.73 | 160.97 | -18.00 | 144.74 | 0.5118 | 958.2 | 692.1 | |
| 0.00 | 2.68 | 0.00 | 1.54 | -17.25 | 160.56 | -18.41 | 143.54 | 0.5097 | 845.0 | 625.1 | |
| 3.40 | 6.97 | 1.97 | 4.04 | -17.99 | 160.27 | -18.70 | 144.02 | 0.5210 | 909.3 | 672.8 | |
| 0.00 | 2.95 | 0.00 | 1.71 | -17.69 | 160.24 | -18.73 | 143.62 | 0.5177 | 815.0 | 592.1 | |
| 0.00 | 2.15 | 0.00 | 1.25 | -18.31 | 159.80 | -19.17 | 143.72 | 0.5289 | 507.0 | 458.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -18.36 | 159.56 | -19.41 | 143.43 | 0.5315 | 360.0 | 339.2 | |
| 0.00 | 1.88 | 0.00 | 1.10 | -18.56 | 159.50 | -19.47 | 143.59 | 0.5344 | 454.0 | 499.3 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -17.69 | 159.57 | -19.40 | 142.65 | 0.5237 | 599.0 | 379.6 | |
| 0.00 | 2.24 | 0.00 | 1.30 | -17.99 | 159.50 | -19.47 | 142.91 | 0.5278 | 764.0 | 554.1 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -18.34 | 159.26 | -19.71 | 142.98 | 0.5339 | 444.0 | 367.9 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -17.33 | 159.31 | -19.66 | 141.84 | 0.5220 | 273.0 | 342.2 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -18.65 | 159.01 | -19.96 | 143.02 | 0.5397 | 261.0 | 217.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.62 | 159.05 | -19.92 | 140.58 | 0.5162 | 578.0 | 568.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.69 | 158.87 | -20.10 | 140.43 | 0.5187 | 719.0 | 636.2 | |
| 0.00 | 2.50 | 0.00 | 1.48 | -18.54 | 157.77 | -21.20 | 141.22 | 0.5496 | -229.0 | -175.2 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -17.58 | 157.62 | -21.35 | 139.85 | 0.5404 | -964.0 | -740.5 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -18.36 | 157.28 | -21.69 | 140.37 | 0.5521 | -910.0 | -730.3 | |
| 2.15 | 11.27 | 1.28 | 6.73 | -18.94 | 157.09 | -21.88 | 140.83 | 0.5601 | -998.5 | -807.6 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -19.15 | 156.86 | -22.11 | 140.78 | 0.5646 | -420.0 | -468.5 | |
| 1.16 | -20.00 | 0.69 | -20.00 | -18.82 | 156.80 | -22.17 | 140.32 | 0.5615 | -989.8 | 999999 | |
| 5.99 | 10.73 | 3.59 | 6.43 | -18.84 | 156.49 | -22.48 | 139.94 | 0.5646 | -917.4 | -645.9 | |
| 1.07 | 5.45 | 0.63 | 3.18 | -15.90 | 156.80 | -22.17 | 136.62 | 0.5304 | -769.2 | -694.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
