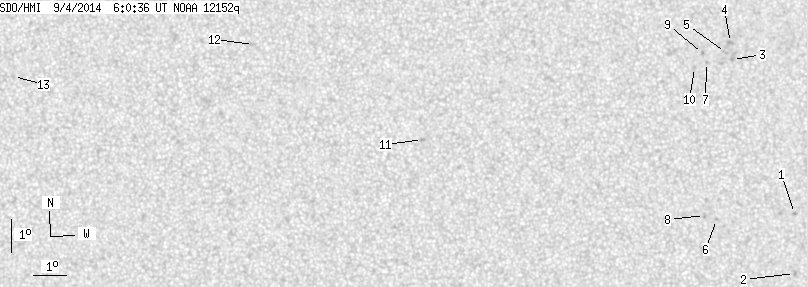

SDO HMI 2014-09-04 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.19 | 0.00 | 11.12 | 9.10 | 182.04 | 4.16 | 224.66 | 0.1463 | -499.2 | -387.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.72 | 6.08 | 187.82 | 9.94 | 263.93 | 0.1735 | -915.0 | -767.2 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 4.26 | 187.79 | 9.91 | 253.79 | 0.1796 | -761.0 | -658.5 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 10.78 | 186.01 | 8.14 | 294.38 | 0.1534 | -821.0 | -699.2 | |
| 0.00 | 2.24 | 0.00 | 1.12 | 11.29 | 185.97 | 8.09 | 297.55 | 0.1564 | -958.0 | -806.2 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 10.99 | 185.80 | 7.93 | 296.24 | 0.1517 | -878.0 | -729.8 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 5.95 | 185.42 | 7.54 | 260.70 | 0.1329 | -958.0 | -761.7 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.70 | 185.20 | 7.33 | 296.12 | 0.1403 | -875.0 | -721.0 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 6.07 | 185.05 | 7.18 | 261.19 | 0.1263 | -956.0 | -766.7 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.97 | 185.09 | 7.21 | 298.24 | 0.1406 | -957.0 | -780.3 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.55 | 184.83 | 6.96 | 296.30 | 0.1334 | -923.0 | -690.1 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 8.44 | 176.45 | -1.42 | 49.38 | 0.0324 | 1001.0 | 758.7 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 11.27 | 171.22 | -6.65 | 57.90 | 0.1347 | 746.0 | 543.9 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 10.14 | 163.74 | -14.13 | 77.21 | 0.2475 | 765.0 | 555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
