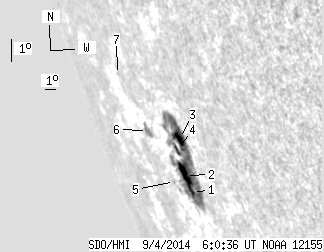

SDO HMI 2014-09-04 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.68 | 147.28 | 44.82 | 268.55 | -19.42 | 107.37 | -70.51 | 112.57 | 0.9638 | 542.9 | 232.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 138.16 | 2.31 | 248.96 | -20.44 | 107.48 | -70.39 | 113.62 | 0.9646 | 508.1 | 270.2 | |
| 13.59 | -1.00 | 25.11 | -1.00 | -19.89 | 107.38 | -70.49 | 113.04 | 0.9644 | 545.7 | 999999 | |
| 6.62 | -1.00 | 11.55 | -1.00 | -18.58 | 108.09 | -69.79 | 111.89 | 0.9598 | 818.8 | 999999 | |
| 3.22 | -1.00 | 5.85 | -1.00 | -19.02 | 107.48 | -70.39 | 112.19 | 0.9630 | 372.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 2.92 | -20.28 | 105.83 | -72.04 | 113.08 | 0.9710 | -148.0 | -194.8 | |
| 0.00 | 6.80 | 0.00 | 14.56 | -18.74 | 104.65 | -73.22 | 111.29 | 0.9740 | -241.0 | -155.2 | |
| 0.00 | 0.89 | 0.00 | 2.11 | -17.13 | 102.99 | -74.88 | 109.33 | 0.9786 | -162.0 | -173.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
