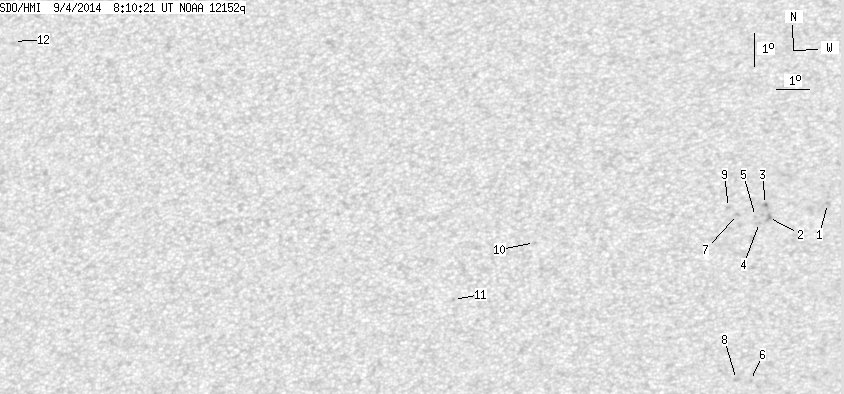

SDO HMI 2014-09-04 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.75 | 0.00 | 9.92 | 10.19 | 183.44 | 6.75 | 261.28 | 0.1606 | -447.5 | -463.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.81 | 11.27 | 187.99 | 11.30 | 290.77 | 0.2064 | -732.0 | -603.2 | |
| 0.00 | 3.49 | 0.00 | 1.75 | 10.89 | 186.13 | 9.44 | 292.15 | 0.1746 | -703.0 | -721.4 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.28 | 186.05 | 9.36 | 294.42 | 0.1759 | -955.0 | -827.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 10.74 | 185.84 | 9.15 | 291.93 | 0.1692 | -814.0 | -638.5 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 10.93 | 185.72 | 9.03 | 293.20 | 0.1685 | -863.0 | -678.3 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 5.97 | 185.44 | 8.76 | 262.30 | 0.1535 | -803.0 | -697.9 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 11.00 | 185.16 | 8.47 | 294.90 | 0.1602 | -889.0 | -691.1 | |
| 0.00 | 2.50 | 0.00 | 1.25 | 6.01 | 185.02 | 8.33 | 262.12 | 0.1460 | -897.0 | -675.1 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 11.22 | 184.89 | 8.20 | 296.86 | 0.1575 | -810.0 | -586.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.23 | 178.87 | 2.18 | 324.45 | 0.0648 | 792.0 | 591.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 8.52 | 176.38 | -0.30 | 13.17 | 0.0232 | 885.0 | 763.1 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 16.15 | 162.39 | -14.30 | 56.19 | 0.2868 | 419.0 | 343.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
