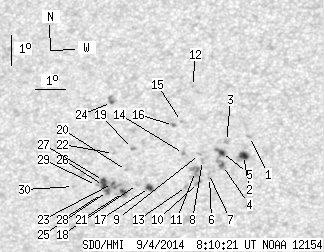

SDO HMI 2014-09-04 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.09 | 89.59 | 12.25 | 51.84 | -18.14 | 158.58 | -18.11 | 145.13 | 0.5178 | 42.2 | 72.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.91 | -17.02 | 161.42 | -15.27 | 148.22 | 0.4800 | 637.0 | 575.1 | |
| 4.56 | 8.14 | 2.59 | 4.62 | -17.66 | 161.17 | -15.52 | 148.52 | 0.4903 | 980.8 | 692.3 | |
| 0.00 | 2.59 | 0.00 | 1.47 | -17.21 | 160.65 | -16.04 | 147.17 | 0.4888 | 740.0 | 598.0 | |
| 1.07 | 12.97 | 0.61 | 7.40 | -18.02 | 160.44 | -16.25 | 147.75 | 0.5006 | 807.7 | 666.8 | |
| 2.50 | -4.00 | 1.43 | -4.00 | -17.58 | 160.45 | -16.24 | 147.27 | 0.4951 | 894.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -18.44 | 159.97 | -16.72 | 147.48 | 0.5097 | 501.0 | 478.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.30 | 159.95 | -16.74 | 147.30 | 0.5082 | 600.0 | 498.4 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -17.87 | 159.79 | -16.90 | 146.57 | 0.5041 | 740.0 | 608.1 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -17.68 | 159.71 | -16.98 | 146.22 | 0.5024 | 646.0 | 525.6 | |
| 0.00 | 2.59 | 0.00 | 1.50 | -18.62 | 159.58 | -17.11 | 147.09 | 0.5151 | 705.0 | 558.7 | |
| 0.00 | 8.58 | 0.00 | 4.94 | -18.25 | 159.52 | -17.17 | 146.58 | 0.5110 | 790.0 | 562.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -15.43 | 159.69 | -17.00 | 143.43 | 0.4750 | 649.0 | 531.1 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -18.77 | 159.16 | -17.52 | 146.62 | 0.5203 | 625.0 | 435.0 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -17.66 | 159.18 | -17.51 | 145.39 | 0.5067 | 670.0 | 577.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -16.60 | 159.22 | -17.47 | 144.17 | 0.4934 | 620.0 | 527.6 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -16.74 | 158.94 | -17.75 | 143.92 | 0.4976 | 711.0 | 597.9 | |
| 2.68 | 4.20 | 1.57 | 2.46 | -18.85 | 157.91 | -18.78 | 144.89 | 0.5318 | -908.2 | -642.0 | |
| 0.00 | 2.06 | 0.00 | 1.20 | -18.77 | 157.51 | -19.17 | 144.23 | 0.5341 | -757.0 | -649.7 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -17.57 | 157.49 | -19.20 | 142.77 | 0.5204 | -848.0 | -729.0 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -18.31 | 157.20 | -19.49 | 143.26 | 0.5316 | -774.0 | -629.2 | |
| 2.41 | 5.81 | 1.42 | 3.42 | -19.06 | 157.00 | -19.69 | 143.86 | 0.5419 | -891.2 | -618.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.76 | 156.82 | -19.87 | 142.07 | 0.5286 | -742.0 | -530.1 | |
| 0.89 | 18.24 | 0.53 | 10.75 | -18.77 | 156.67 | -20.02 | 143.06 | 0.5416 | -996.9 | -729.5 | |
| 0.63 | 3.67 | 0.36 | 2.11 | -16.07 | 156.94 | -19.75 | 140.11 | 0.5082 | -842.3 | -728.1 | |
| 1.79 | -23.00 | 1.06 | -23.00 | -19.05 | 156.46 | -20.23 | 143.11 | 0.5465 | -621.0 | 999999 | |
| 2.41 | -23.00 | 1.42 | -23.00 | -18.85 | 156.35 | -20.34 | 142.73 | 0.5453 | -810.6 | 999999 | |
| 2.15 | -23.00 | 1.26 | -23.00 | -18.69 | 156.37 | -20.32 | 142.56 | 0.5432 | -849.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -19.13 | 156.28 | -20.41 | 142.95 | 0.5490 | -91.0 | -228.6 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -18.87 | 156.11 | -20.58 | 142.42 | 0.5475 | -462.0 | -415.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -18.94 | 155.31 | -21.38 | 141.45 | 0.5555 | -624.0 | -515.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
