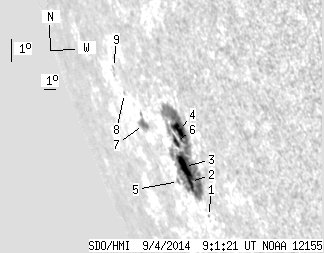

SDO HMI 2014-09-04 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.81 | 166.94 | 47.13 | 280.40 | -19.33 | 107.26 | -68.96 | 112.84 | 0.9569 | 467.5 | 215.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 1.64 | -21.45 | 107.95 | -68.27 | 115.16 | 0.9565 | 241.0 | 232.8 | |
| 1.97 | 152.10 | 3.34 | 251.60 | -20.35 | 107.43 | -68.79 | 113.91 | 0.9575 | 451.7 | 234.8 | |
| 10.55 | -2.00 | 17.83 | -2.00 | -19.86 | 107.36 | -68.87 | 113.40 | 0.9572 | 538.5 | 999999 | |
| 7.87 | -2.00 | 12.65 | -2.00 | -18.60 | 107.96 | -68.26 | 112.27 | 0.9527 | 776.5 | 999999 | |
| 0.00 | 1.88 | 0.00 | 3.42 | -20.50 | 106.16 | -70.07 | 113.76 | 0.9633 | -14.0 | -23.5 | |
| 4.20 | -2.00 | 7.01 | -2.00 | -19.03 | 107.41 | -68.82 | 112.57 | 0.9559 | 310.4 | 999999 | |
| 3.22 | 9.93 | 6.30 | 19.43 | -18.84 | 104.42 | -71.80 | 111.68 | 0.9687 | 128.8 | 83.5 | |
| 0.00 | 0.80 | 0.00 | 1.67 | -17.96 | 103.33 | -72.90 | 110.56 | 0.9721 | -149.0 | -140.0 | |
| 0.00 | 1.25 | 0.00 | 2.64 | -17.16 | 102.96 | -73.27 | 109.68 | 0.9729 | -94.0 | -140.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
