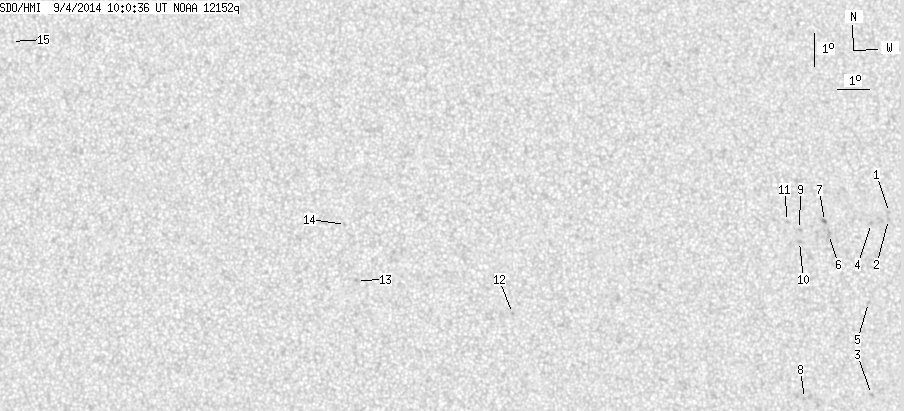

SDO HMI 2014-09-04 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.61 | 0.00 | 11.41 | 10.35 | 183.65 | 7.96 | 256.03 | 0.1814 | -432.1 | -456.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 11.45 | 188.11 | 12.43 | 289.95 | 0.2254 | -676.0 | -573.9 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 11.24 | 188.07 | 12.39 | 289.10 | 0.2237 | -660.0 | -537.5 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 5.96 | 187.36 | 11.68 | 264.48 | 0.2032 | -929.0 | -792.9 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 11.13 | 187.53 | 11.85 | 289.35 | 0.2145 | -870.0 | -641.9 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 8.74 | 187.34 | 11.66 | 278.28 | 0.2028 | -855.0 | -508.9 | |
| 0.00 | 4.29 | 0.00 | 2.17 | 10.83 | 186.17 | 10.48 | 289.98 | 0.1910 | -845.0 | -683.0 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 11.23 | 186.06 | 10.37 | 292.13 | 0.1915 | -1135.0 | -908.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 5.89 | 185.29 | 9.60 | 262.61 | 0.1681 | -833.0 | -602.0 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.00 | 185.27 | 9.58 | 292.48 | 0.1777 | -1040.0 | -833.2 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 10.64 | 185.25 | 9.57 | 290.56 | 0.1753 | -976.0 | -815.9 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.25 | 184.90 | 9.22 | 294.58 | 0.1735 | -861.0 | -631.4 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 8.57 | 176.38 | 0.69 | 333.03 | 0.0265 | 980.0 | 813.8 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 9.56 | 171.59 | -4.09 | 59.75 | 0.0818 | 948.0 | 710.6 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.25 | 171.23 | -4.45 | 47.16 | 0.1042 | 665.0 | 612.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 16.61 | 160.42 | -15.26 | 56.44 | 0.3040 | 606.0 | 428.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
