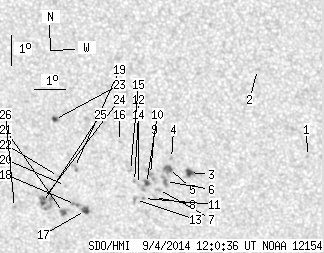

SDO HMI 2014-09-04 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.17 | 85.79 | 9.79 | 48.99 | -18.11 | 158.82 | -15.77 | 148.74 | 0.4982 | 174.4 | 57.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.01 | 165.14 | -9.45 | 159.00 | 0.4397 | 782.0 | 559.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -14.19 | 163.69 | -10.90 | 153.20 | 0.4082 | 640.0 | 477.1 | |
| 3.49 | 6.52 | 1.96 | 3.67 | -17.64 | 161.28 | -13.30 | 152.28 | 0.4732 | 926.2 | 678.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.19 | 160.73 | -13.85 | 150.83 | 0.4712 | 922.0 | 722.0 | |
| 2.86 | 6.52 | 1.61 | 3.67 | -17.53 | 160.61 | -13.98 | 150.98 | 0.4767 | 933.2 | 747.2 | |
| 0.00 | 4.92 | 0.00 | 2.78 | -17.97 | 160.47 | -14.11 | 151.21 | 0.4835 | 891.0 | 769.0 | |
| 0.00 | 2.32 | 0.00 | 1.32 | -18.24 | 160.22 | -14.36 | 151.06 | 0.4890 | 806.0 | 626.8 | |
| 0.00 | 2.15 | 0.00 | 1.22 | -18.52 | 160.06 | -14.52 | 151.09 | 0.4937 | 502.0 | 443.5 | |
| 0.00 | 6.44 | 0.00 | 3.64 | -17.75 | 160.00 | -14.59 | 150.17 | 0.4841 | 804.0 | 650.0 | |
| 1.70 | 6.35 | 0.96 | 3.60 | -18.05 | 159.84 | -14.74 | 150.23 | 0.4893 | 846.2 | 580.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.56 | 159.70 | -14.89 | 150.53 | 0.4970 | 626.0 | 594.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.10 | 159.57 | -15.01 | 149.83 | 0.4919 | 531.0 | 366.2 | |
| 0.00 | 2.86 | 0.00 | 1.63 | -18.60 | 159.43 | -15.16 | 150.13 | 0.4995 | 695.0 | 585.9 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.00 | 159.45 | -15.13 | 149.53 | 0.4916 | 659.0 | 551.8 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -17.64 | 159.35 | -15.23 | 148.96 | 0.4876 | 763.0 | 616.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.68 | 159.07 | -15.51 | 147.42 | 0.4776 | 663.0 | 571.2 | |
| 3.22 | 5.27 | 1.86 | 3.05 | -19.03 | 157.72 | -16.86 | 147.91 | 0.5182 | -943.1 | -720.8 | |
| 0.00 | 3.22 | 0.00 | 1.86 | -18.84 | 157.41 | -17.18 | 147.23 | 0.5183 | -933.0 | -803.1 | |
| 0.00 | 3.58 | 0.00 | 2.05 | -17.60 | 157.50 | -17.08 | 145.97 | 0.5022 | -908.0 | -751.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -18.22 | 157.14 | -17.44 | 146.12 | 0.5128 | -829.0 | -644.6 | |
| 1.88 | 5.36 | 1.09 | 3.12 | -19.13 | 156.97 | -17.61 | 146.89 | 0.5253 | -884.4 | -655.3 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -17.92 | 156.94 | -17.65 | 145.48 | 0.5109 | -594.0 | -425.7 | |
| 1.61 | 2.68 | 0.91 | 1.52 | -16.03 | 156.99 | -17.59 | 143.26 | 0.4876 | -791.9 | -707.7 | |
| 1.07 | 14.48 | 0.62 | 8.42 | -18.68 | 156.35 | -18.23 | 145.48 | 0.5250 | -861.4 | -708.3 | |
| 1.34 | -24.00 | 0.78 | -24.00 | -18.82 | 156.30 | -18.28 | 145.56 | 0.5271 | -747.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -19.03 | 155.33 | -19.25 | 144.42 | 0.5378 | -748.0 | -688.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
