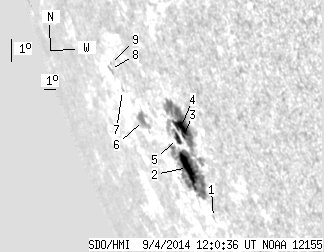

SDO HMI 2014-09-04 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.54 | 179.40 | 50.02 | 278.44 | -19.38 | 107.12 | -67.46 | 113.27 | 0.9497 | 396.3 | 193.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.97 | -21.57 | 108.04 | -66.55 | 115.73 | 0.9485 | 387.0 | 319.6 | |
| 18.59 | 163.12 | 29.03 | 249.23 | -19.99 | 107.29 | -67.29 | 113.93 | 0.9498 | 369.3 | 205.2 | |
| 0.72 | -2.00 | 1.07 | -2.00 | -18.89 | 107.89 | -66.70 | 112.97 | 0.9452 | 466.8 | 999999 | |
| 9.12 | -2.00 | 13.58 | -2.00 | -18.60 | 107.88 | -66.71 | 112.66 | 0.9448 | 667.8 | 999999 | |
| 4.11 | -2.00 | 6.34 | -2.00 | -19.03 | 107.27 | -67.31 | 112.95 | 0.9485 | 271.8 | 999999 | |
| 0.00 | 12.69 | 0.00 | 22.54 | -18.78 | 104.47 | -70.12 | 112.01 | 0.9615 | 266.0 | 191.7 | |
| 0.00 | 0.63 | 0.00 | 1.18 | -17.96 | 103.21 | -71.37 | 110.89 | 0.9660 | -219.0 | -210.0 | |
| 0.00 | 2.06 | 0.00 | 4.01 | -17.35 | 102.57 | -72.01 | 110.14 | 0.9681 | -308.0 | -248.3 | |
| 0.00 | 0.27 | 0.00 | 0.51 | -17.13 | 102.78 | -71.80 | 109.96 | 0.9670 | -334.0 | -284.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
