SDO HMI 2014-09-04 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 83.89 | 6.66 | 47.74 | -18.12 | 158.83 | -15.20 | 149.64 | 0.4940 | 123.7 | 113.9 | |
|
previous
or next observation for the same group /

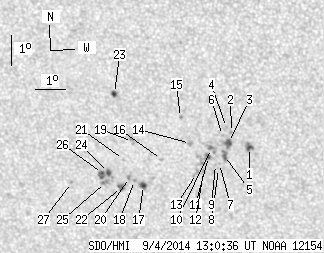

back to the solar disc SDO HMI 2014-09-04 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 5.81 | 1.00 | 3.25 | -17.66 | 161.31 | -12.72 | 153.34 | 0.4694 | 974.5 | 787.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.18 | 160.77 | -13.27 | 151.85 | 0.4667 | 868.0 | 655.2 | |
| 2.32 | 6.70 | 1.30 | 3.76 | -17.51 | 160.64 | -13.39 | 151.99 | 0.4722 | 1004.1 | 715.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.02 | 160.61 | -13.42 | 151.41 | 0.4657 | 847.0 | 699.9 | |
| 0.00 | 5.54 | 0.00 | 3.12 | -17.95 | 160.48 | -13.56 | 152.15 | 0.4793 | 893.0 | 735.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.29 | 160.46 | -13.57 | 151.43 | 0.4704 | 631.0 | 483.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -18.23 | 160.29 | -13.74 | 152.11 | 0.4842 | 772.0 | 656.3 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.40 | 160.24 | -13.79 | 152.20 | 0.4868 | 605.0 | 531.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.26 | 160.16 | -13.88 | 151.91 | 0.4857 | 624.0 | 537.4 | |
| 0.00 | 5.63 | 0.00 | 3.17 | -17.73 | 160.07 | -13.96 | 151.21 | 0.4792 | 833.0 | 699.5 | |
| 1.16 | 9.83 | 0.66 | 5.57 | -18.00 | 159.95 | -14.08 | 151.29 | 0.4837 | 915.5 | 582.1 | |
| 0.00 | 2.41 | 0.00 | 1.37 | -18.51 | 159.74 | -14.29 | 151.46 | 0.4920 | 740.0 | 529.3 | |
| 0.00 | 3.75 | 0.00 | 2.14 | -18.59 | 159.50 | -14.53 | 151.14 | 0.4947 | 675.0 | 513.4 | |
| 0.00 | 2.68 | 0.00 | 1.51 | -17.59 | 159.39 | -14.64 | 149.90 | 0.4824 | 835.0 | 566.6 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.73 | 159.14 | -14.90 | 148.51 | 0.4733 | 783.0 | 626.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.15 | 158.39 | -15.64 | 148.86 | 0.4975 | 623.0 | 525.5 | |
| 2.14 | 4.29 | 1.24 | 2.47 | -19.05 | 157.70 | -16.33 | 148.74 | 0.5142 | -997.0 | -790.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.89 | 157.42 | -16.61 | 148.13 | 0.5145 | -976.0 | -852.1 | |
| 0.00 | 3.13 | 0.00 | 1.78 | -17.59 | 157.48 | -16.55 | 146.78 | 0.4976 | -768.0 | -719.5 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -18.80 | 157.26 | -16.77 | 147.79 | 0.5145 | -982.0 | -846.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.20 | 157.12 | -16.91 | 146.91 | 0.5082 | -745.0 | -591.5 | |
| 0.00 | 5.00 | 0.00 | 2.90 | -19.15 | 156.96 | -17.08 | 147.71 | 0.5213 | -914.0 | -724.7 | |
| 1.52 | 2.86 | 0.86 | 1.62 | -16.02 | 157.04 | -17.00 | 144.17 | 0.4820 | -816.1 | -673.5 | |
| 1.70 | 9.83 | 0.98 | 5.69 | -18.66 | 156.58 | -17.46 | 146.59 | 0.5183 | -1012.2 | -747.8 | |
| 0.00 | 3.93 | 0.00 | 2.28 | -19.00 | 156.44 | -17.60 | 146.77 | 0.5236 | -705.0 | -599.6 | |
| 1.07 | -24.00 | 0.62 | -24.00 | -18.70 | 156.37 | -17.66 | 146.33 | 0.5205 | -849.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -19.05 | 155.29 | -18.75 | 145.15 | 0.5337 | -769.0 | -633.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
