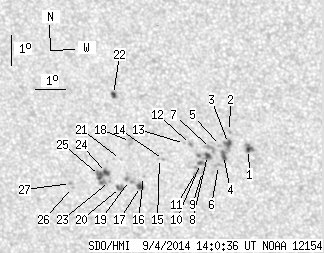

SDO HMI 2014-09-04 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.14 | 90.08 | 10.30 | 51.18 | -18.16 | 158.74 | -14.75 | 150.44 | 0.4912 | 37.6 | 78.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 5.99 | 1.20 | 3.35 | -17.71 | 161.32 | -12.17 | 154.39 | 0.4664 | 895.4 | 776.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -17.13 | 160.74 | -12.74 | 152.76 | 0.4623 | 644.0 | 609.9 | |
| 2.06 | 11.97 | 1.15 | 6.72 | -17.53 | 160.68 | -12.80 | 153.05 | 0.4682 | 1014.8 | 736.3 | |
| 2.41 | -3.00 | 1.36 | -3.00 | -17.93 | 160.49 | -13.00 | 153.12 | 0.4751 | 845.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -17.60 | 160.41 | -13.07 | 152.65 | 0.4711 | 517.0 | 568.4 | |
| 0.00 | 3.04 | 0.00 | 1.71 | -18.27 | 160.30 | -13.18 | 153.12 | 0.4810 | 799.0 | 648.0 | |
| 0.00 | 5.63 | 0.00 | 3.17 | -17.71 | 160.08 | -13.40 | 152.17 | 0.4749 | 819.0 | 727.7 | |
| 2.23 | 11.62 | 1.26 | 6.56 | -17.95 | 159.96 | -13.52 | 152.21 | 0.4790 | 841.7 | 596.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.49 | 159.76 | -13.73 | 152.40 | 0.4877 | 763.0 | 584.1 | |
| 0.63 | -8.00 | 0.35 | -8.00 | -18.22 | 159.71 | -13.77 | 152.06 | 0.4844 | 652.7 | 999999 | |
| 0.00 | 4.74 | 0.00 | 2.69 | -18.50 | 159.56 | -13.92 | 152.07 | 0.4892 | 494.0 | 448.6 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -17.60 | 159.44 | -14.05 | 150.93 | 0.4781 | 818.0 | 673.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.57 | 159.24 | -14.24 | 150.57 | 0.4792 | 577.0 | 479.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.13 | 158.50 | -14.98 | 149.92 | 0.4921 | 656.0 | 520.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.10 | 158.38 | -15.11 | 149.68 | 0.4927 | 460.0 | 369.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.72 | 157.79 | -15.69 | 149.39 | 0.5052 | -786.0 | -622.7 | |
| 2.23 | 4.11 | 1.29 | 2.36 | -19.07 | 157.65 | -15.83 | 149.54 | 0.5106 | -943.0 | -778.1 | |
| 0.00 | 4.38 | 0.00 | 2.49 | -17.57 | 157.47 | -16.01 | 147.61 | 0.4930 | -809.0 | -590.8 | |
| 0.00 | 3.75 | 0.00 | 2.16 | -18.88 | 157.31 | -16.17 | 148.80 | 0.5108 | -958.0 | -819.3 | |
| 0.00 | 4.02 | 0.00 | 2.32 | -19.12 | 156.98 | -16.50 | 148.56 | 0.5164 | -779.0 | -733.3 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -18.18 | 157.08 | -16.40 | 147.68 | 0.5038 | -755.0 | -674.3 | |
| 1.88 | 3.13 | 1.06 | 1.76 | -16.03 | 157.05 | -16.44 | 145.09 | 0.4772 | -812.2 | -625.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.93 | 156.63 | -16.85 | 147.82 | 0.5168 | -800.0 | -730.1 | |
| 1.97 | 14.92 | 1.13 | 8.62 | -18.63 | 156.57 | -16.92 | 147.39 | 0.5136 | -1007.5 | -697.1 | |
| 2.59 | -24.00 | 1.50 | -24.00 | -18.74 | 156.32 | -17.16 | 147.14 | 0.5170 | -806.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -19.19 | 155.37 | -18.12 | 146.21 | 0.5301 | -654.0 | -538.2 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -19.05 | 155.31 | -18.17 | 145.99 | 0.5290 | -813.0 | -690.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
