SDO HMI 2014-09-04 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.19 | 174.47 | 43.25 | 252.04 | -19.41 | 107.15 | -65.78 | 113.74 | 0.9410 | 415.8 | 213.2 | |
|
previous
or next observation for the same group /

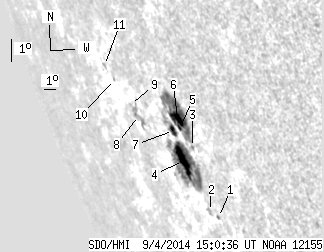

back to the solar disc SDO HMI 2014-09-04 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 1.89 | -21.78 | 108.52 | -64.41 | 116.55 | 0.9378 | 309.0 | 329.4 | |
| 0.00 | 2.77 | 0.00 | 4.00 | -21.65 | 107.94 | -64.99 | 116.25 | 0.9406 | 411.0 | 289.7 | |
| 0.00 | 1.07 | 0.00 | 1.47 | -19.46 | 108.41 | -64.52 | 114.14 | 0.9343 | 379.0 | 341.6 | |
| 17.33 | 82.01 | 25.20 | 119.04 | -20.02 | 107.27 | -65.66 | 114.40 | 0.9415 | 403.3 | 148.4 | |
| 0.89 | 71.65 | 1.25 | 99.83 | -18.90 | 107.84 | -65.09 | 113.41 | 0.9365 | 354.0 | 314.0 | |
| 7.68 | -5.00 | 10.65 | -5.00 | -18.56 | 107.94 | -64.99 | 113.08 | 0.9354 | 690.2 | 999999 | |
| 4.29 | -5.00 | 6.15 | -5.00 | -19.03 | 107.27 | -65.66 | 113.39 | 0.9399 | 299.3 | 999999 | |
| 0.00 | 11.61 | 0.00 | 18.92 | -18.87 | 104.51 | -68.43 | 112.51 | 0.9538 | 186.0 | 174.8 | |
| 0.00 | 1.34 | 0.00 | 2.22 | -18.56 | 104.07 | -68.86 | 112.09 | 0.9555 | 311.0 | 279.2 | |
| 0.00 | 1.07 | 0.00 | 1.84 | -17.85 | 103.24 | -69.69 | 111.16 | 0.9585 | -135.0 | -239.7 | |
| 0.00 | 1.61 | 0.00 | 2.83 | -17.46 | 102.64 | -70.29 | 110.63 | 0.9608 | -365.0 | -303.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
