SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.26 | 0.00 | 5.71 | 8.90 | 183.98 | 11.60 | 286.79 | 0.2113 | -617.0 | -583.2 | |
|
previous
or next observation for the same group /

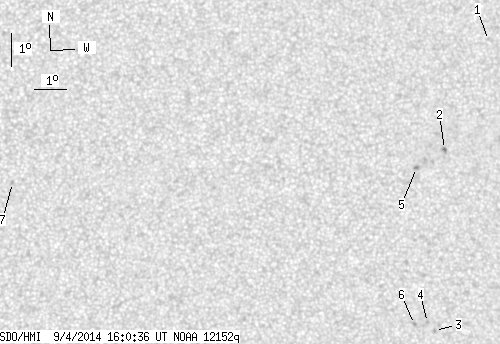

back to the solar disc SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.23 | 14.43 | 187.79 | 15.41 | 296.77 | 0.2895 | -308.0 | -213.4 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 11.17 | 186.18 | 13.80 | 287.17 | 0.2460 | -1052.0 | -816.5 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 5.71 | 185.66 | 13.28 | 264.23 | 0.2308 | -891.0 | -715.6 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 5.96 | 185.45 | 13.07 | 265.20 | 0.2267 | -1007.0 | -824.8 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 10.65 | 185.27 | 12.89 | 286.00 | 0.2291 | -1083.0 | -893.0 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 5.91 | 185.04 | 12.66 | 264.78 | 0.2200 | -916.0 | -774.6 | |
| 0.00 | 1.52 | 0.00 | 0.75 | 10.39 | 172.74 | 0.36 | 353.62 | 0.0558 | 938.0 | 735.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
