SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.36 | 91.18 | 9.25 | 51.58 | -18.17 | 158.80 | -13.58 | 152.45 | 0.4828 | 217.4 | 80.8 | |
|
previous
or next observation for the same group /

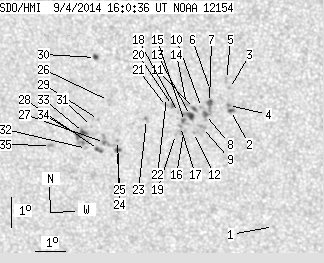

back to the solar disc SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.62 | 162.53 | -9.85 | 161.68 | 0.5083 | 380.0 | 316.9 | |
| 1.16 | 2.50 | 0.65 | 1.39 | -17.71 | 161.38 | -11.00 | 156.57 | 0.4589 | 936.3 | 783.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.98 | 161.40 | -10.98 | 155.92 | 0.4484 | 759.0 | 528.8 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -17.54 | 161.33 | -11.05 | 156.32 | 0.4569 | 1032.0 | 827.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -16.68 | 161.32 | -11.06 | 155.49 | 0.4447 | 652.0 | 563.9 | |
| 0.00 | 2.68 | 0.00 | 1.49 | -17.06 | 160.78 | -11.60 | 154.82 | 0.4536 | 703.0 | 623.6 | |
| 1.88 | 10.81 | 1.05 | 6.04 | -17.46 | 160.72 | -11.66 | 155.09 | 0.4596 | 1038.6 | 802.5 | |
| 0.98 | -7.00 | 0.55 | -7.00 | -17.86 | 160.56 | -11.82 | 155.18 | 0.4662 | 999.9 | 999999 | |
| 0.00 | 3.66 | 0.00 | 2.06 | -18.30 | 160.44 | -11.94 | 155.36 | 0.4732 | 746.0 | 663.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -17.63 | 160.45 | -11.93 | 154.75 | 0.4638 | 855.0 | 670.3 | |
| 0.89 | 2.86 | 0.50 | 1.60 | -17.67 | 160.22 | -12.16 | 154.37 | 0.4658 | 845.8 | 743.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.48 | 160.13 | -12.25 | 154.97 | 0.4776 | 579.0 | 471.2 | |
| 2.86 | 6.25 | 1.60 | 3.51 | -17.91 | 160.07 | -12.31 | 154.33 | 0.4701 | 888.1 | 701.4 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -17.51 | 159.97 | -12.41 | 153.76 | 0.4653 | 667.0 | 644.3 | |
| 0.00 | 3.13 | 0.00 | 1.76 | -18.12 | 159.86 | -12.52 | 154.15 | 0.4743 | 697.0 | 594.0 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.49 | 159.80 | -12.58 | 154.40 | 0.4798 | 586.0 | 528.7 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.29 | 159.72 | -12.66 | 154.06 | 0.4776 | 661.0 | 536.7 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -17.82 | 159.69 | -12.69 | 153.55 | 0.4714 | 598.0 | 563.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.56 | 159.54 | -12.84 | 154.00 | 0.4826 | 520.0 | 481.6 | |
| 0.45 | 2.14 | 0.25 | 1.20 | -17.59 | 159.51 | -12.87 | 153.00 | 0.4696 | 871.8 | 683.9 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.63 | 159.31 | -13.07 | 152.69 | 0.4715 | 460.0 | 485.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.33 | 159.34 | -13.04 | 152.42 | 0.4672 | 723.0 | 630.5 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -18.08 | 158.62 | -13.75 | 151.94 | 0.4825 | 795.0 | 582.5 | |
| 1.34 | 3.04 | 0.77 | 1.74 | -19.13 | 157.58 | -14.80 | 151.25 | 0.5038 | -938.7 | -766.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -18.82 | 157.61 | -14.77 | 150.99 | 0.4996 | -835.0 | -712.2 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -17.49 | 157.43 | -14.95 | 149.28 | 0.4836 | -940.0 | -747.0 | |
| 0.45 | 7.77 | 0.26 | 4.45 | -18.90 | 157.17 | -15.21 | 150.36 | 0.5039 | -984.4 | -826.6 | |
| 1.43 | 3.30 | 0.82 | 1.90 | -19.15 | 156.95 | -15.43 | 150.25 | 0.5087 | -761.7 | -652.4 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -18.14 | 157.04 | -15.34 | 149.34 | 0.4949 | -827.0 | -690.1 | |
| 1.43 | 2.59 | 0.80 | 1.45 | -16.08 | 157.12 | -15.26 | 147.13 | 0.4678 | -835.0 | -710.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.38 | 156.79 | -15.59 | 149.19 | 0.5000 | -681.0 | -617.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.13 | 156.55 | -15.83 | 149.61 | 0.5114 | -517.0 | -404.2 | |
| 1.61 | 15.45 | 0.92 | 8.87 | -18.59 | 156.50 | -15.88 | 148.96 | 0.5049 | -1020.6 | -707.8 | |
| 1.88 | -33.00 | 1.08 | -33.00 | -18.70 | 156.33 | -16.05 | 148.80 | 0.5076 | -851.9 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.24 | -19.07 | 155.35 | -17.02 | 147.70 | 0.5199 | -864.0 | -700.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
