SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.98 | 287.09 | 138.51 | 848.01 | -14.08 | 93.71 | -78.67 | 105.59 | 0.9871 | 45.5 | -77.2 | |
|
previous
or next observation for the same group /

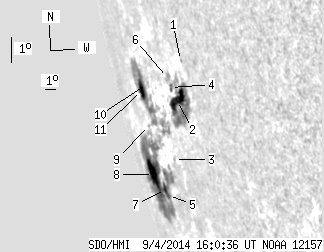

back to the solar disc SDO HMI 2014-09-04 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 1.29 | -10.57 | 100.09 | -72.29 | 103.20 | 0.9630 | -294.0 | -309.9 | |
| 16.79 | 68.87 | 33.37 | 135.80 | -11.98 | 98.84 | -73.54 | 104.40 | 0.9697 | 402.4 | 262.3 | |
| 0.00 | 1.34 | 0.00 | 3.22 | -14.12 | 96.63 | -75.75 | 106.14 | 0.9795 | 296.0 | 281.5 | |
| 1.16 | -2.00 | 2.37 | -2.00 | -11.64 | 98.30 | -74.08 | 103.95 | 0.9716 | 153.8 | 999999 | |
| 0.27 | 155.06 | 0.84 | 534.85 | -15.60 | 94.02 | -78.36 | 107.16 | 0.9880 | 235.3 | -117.0 | |
| 0.00 | 4.56 | 0.00 | 9.38 | -11.34 | 98.17 | -74.20 | 103.62 | 0.9718 | -173.0 | -155.1 | |
| 2.77 | -5.00 | 8.86 | -5.00 | -15.44 | 93.76 | -78.62 | 106.95 | 0.9886 | 24.4 | 999999 | |
| 17.86 | -5.00 | 69.03 | -5.00 | -15.18 | 92.05 | -80.33 | 106.41 | 0.9924 | -103.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 1.96 | -13.42 | 93.67 | -78.71 | 104.92 | 0.9879 | -438.0 | -448.9 | |
| 0.00 | 0.63 | 0.00 | 1.64 | -11.91 | 95.16 | -77.22 | 103.66 | 0.9829 | -251.0 | -238.3 | |
| 8.13 | 55.29 | 24.04 | 159.87 | -12.29 | 93.86 | -78.52 | 103.82 | 0.9868 | 12.4 | -187.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
