SDO HMI 2014-09-04 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.32 | 101.44 | 7.51 | 57.28 | -18.22 | 158.68 | -13.15 | 153.25 | 0.4806 | 108.6 | 48.9 | |
|
previous
or next observation for the same group /

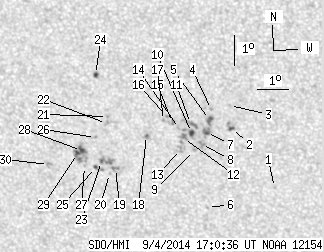

back to the solar disc SDO HMI 2014-09-04 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.68 | 162.72 | -9.11 | 161.71 | 0.4770 | 687.0 | 518.5 | |
| 1.07 | 4.38 | 0.60 | 2.43 | -17.72 | 161.44 | -10.38 | 157.76 | 0.4555 | 953.7 | 802.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.96 | 161.42 | -10.40 | 157.04 | 0.4447 | 795.0 | 562.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.11 | 160.83 | -10.99 | 156.03 | 0.4504 | 927.0 | 754.2 | |
| 1.61 | 12.41 | 0.89 | 6.92 | -17.44 | 160.75 | -11.08 | 156.18 | 0.4557 | 1055.7 | 832.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -20.41 | 160.48 | -11.35 | 158.22 | 0.4991 | 690.0 | 525.1 | |
| 1.52 | -5.00 | 0.85 | -5.00 | -17.88 | 160.62 | -11.20 | 156.34 | 0.4626 | 971.3 | 999999 | |
| 0.00 | 3.75 | 0.00 | 2.10 | -18.28 | 160.43 | -11.39 | 156.35 | 0.4695 | 791.0 | 662.7 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -18.49 | 160.19 | -11.63 | 156.10 | 0.4739 | 574.0 | 491.8 | |
| 2.05 | 5.63 | 1.15 | 3.15 | -17.89 | 160.14 | -11.69 | 155.44 | 0.4658 | 988.4 | 758.0 | |
| 0.00 | 6.79 | 0.00 | 3.79 | -17.59 | 160.12 | -11.70 | 155.14 | 0.4617 | 908.0 | 675.5 | |
| 0.00 | 6.25 | 0.00 | 3.51 | -18.10 | 159.86 | -11.96 | 155.13 | 0.4705 | 647.0 | 562.8 | |
| 0.00 | 3.04 | 0.00 | 1.71 | -18.47 | 159.74 | -12.09 | 155.25 | 0.4765 | 631.0 | 519.6 | |
| 0.00 | 2.50 | 0.00 | 1.40 | -17.77 | 159.76 | -12.07 | 154.62 | 0.4666 | 485.0 | 504.4 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -17.57 | 159.54 | -12.28 | 154.04 | 0.4653 | 869.0 | 753.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.38 | 159.39 | -12.43 | 153.58 | 0.4636 | 763.0 | 589.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.51 | 159.25 | -12.57 | 153.46 | 0.4665 | 600.0 | 453.3 | |
| 0.36 | 1.79 | 0.20 | 1.01 | -18.03 | 158.66 | -13.16 | 152.92 | 0.4776 | 868.2 | 730.4 | |
| 0.00 | 3.30 | 0.00 | 1.89 | -19.17 | 157.55 | -14.28 | 152.15 | 0.5007 | -1048.0 | -829.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -19.35 | 157.33 | -14.49 | 151.97 | 0.5045 | -577.0 | -520.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.43 | 157.44 | -14.39 | 150.17 | 0.4786 | -956.0 | -774.2 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -17.67 | 157.38 | -14.44 | 150.33 | 0.4821 | -759.0 | -676.7 | |
| 0.45 | 8.57 | 0.26 | 4.90 | -18.95 | 157.11 | -14.72 | 151.21 | 0.5010 | -982.4 | -900.3 | |
| 1.34 | 2.41 | 0.75 | 1.35 | -16.06 | 157.15 | -14.67 | 148.12 | 0.4627 | -882.3 | -732.8 | |
| 0.63 | 3.57 | 0.36 | 2.05 | -19.16 | 156.89 | -14.94 | 151.06 | 0.5053 | -722.4 | -646.2 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.15 | 156.98 | -14.85 | 150.17 | 0.4914 | -830.0 | -682.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.14 | 156.52 | -15.30 | 150.46 | 0.5076 | -501.0 | -416.1 | |
| 2.59 | 18.76 | 1.48 | 10.73 | -18.60 | 156.48 | -15.35 | 149.82 | 0.5011 | -1013.6 | -692.3 | |
| 1.70 | -28.00 | 0.97 | -28.00 | -18.71 | 156.33 | -15.49 | 149.70 | 0.5035 | -860.4 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.86 | -19.11 | 155.33 | -16.50 | 148.56 | 0.5164 | -681.0 | -623.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
