SDO HMI 2014-09-04 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.17 | 596.62 | 84.28 | 396.76 | -14.83 | 206.89 | 35.62 | 237.60 | 0.6671 | 48.7 | 38.5 | |
|
previous
or next observation for the same group /

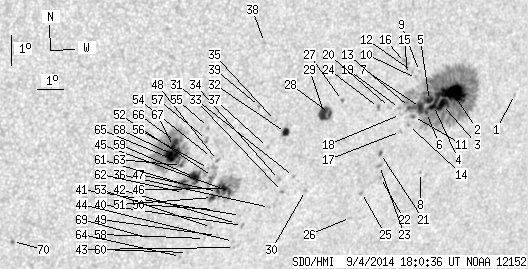

back to the solar disc SDO HMI 2014-09-04 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.85 | -14.29 | 213.51 | 42.24 | 242.77 | 0.7349 | -472.0 | -402.2 | |
| 35.10 | 308.64 | 24.47 | 214.29 | -14.04 | 210.93 | 39.66 | 241.61 | 0.7061 | 1082.6 | 356.8 | |
| 10.09 | -2.00 | 7.02 | -2.00 | -14.36 | 210.55 | 39.28 | 240.97 | 0.7037 | 867.2 | 999999 | |
| 5.89 | -2.00 | 4.07 | -2.00 | -14.36 | 210.19 | 38.91 | 240.74 | 0.6998 | 993.7 | 999999 | |
| 3.75 | -2.00 | 2.58 | -2.00 | -14.18 | 209.99 | 38.72 | 240.85 | 0.6967 | 1151.5 | 999999 | |
| 0.80 | -2.00 | 0.55 | -2.00 | -14.57 | 209.95 | 38.68 | 240.33 | 0.6984 | 789.6 | 999999 | |
| 6.34 | -2.00 | 4.35 | -2.00 | -14.38 | 209.67 | 38.40 | 240.39 | 0.6943 | 966.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -16.54 | 210.15 | 38.87 | 237.98 | 0.7120 | 475.0 | 351.1 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -13.20 | 209.40 | 38.13 | 241.76 | 0.6847 | 447.0 | 374.3 | |
| 0.00 | 2.32 | 0.00 | 1.57 | -13.42 | 209.32 | 38.05 | 241.42 | 0.6850 | 387.0 | 345.0 | |
| 0.80 | 2.41 | 0.55 | 1.65 | -14.65 | 209.45 | 38.17 | 239.90 | 0.6935 | 810.2 | 735.6 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -13.18 | 209.12 | 37.85 | 241.61 | 0.6814 | 751.0 | 656.0 | |
| 1.07 | -2.00 | 0.73 | -2.00 | -14.34 | 209.23 | 37.95 | 240.15 | 0.6893 | 951.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -14.93 | 209.31 | 38.03 | 239.44 | 0.6936 | 744.0 | 645.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -13.26 | 208.94 | 37.67 | 241.38 | 0.6798 | 870.0 | 743.6 | |
| 0.00 | 3.21 | 0.00 | 2.16 | -12.86 | 208.79 | 37.52 | 241.81 | 0.6759 | -159.0 | -155.9 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -15.11 | 209.02 | 37.75 | 239.04 | 0.6916 | 753.0 | 627.6 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -14.54 | 208.91 | 37.64 | 239.68 | 0.6870 | 613.0 | 505.5 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -14.34 | 208.83 | 37.56 | 239.89 | 0.6850 | 881.0 | 702.2 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -14.28 | 208.42 | 37.15 | 239.71 | 0.6801 | 744.0 | 572.3 | |
| 0.98 | 2.14 | 0.67 | 1.46 | -15.77 | 208.37 | 37.10 | 237.76 | 0.6887 | 768.5 | 626.1 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -16.57 | 208.55 | 37.27 | 236.87 | 0.6955 | 691.0 | 645.3 | |
| 0.00 | 2.05 | 0.00 | 1.40 | -16.16 | 208.42 | 37.15 | 237.29 | 0.6916 | 787.0 | 593.4 | |
| 0.00 | 1.88 | 0.00 | 1.26 | -14.24 | 207.99 | 36.71 | 239.46 | 0.6751 | 865.0 | 752.6 | |
| 0.00 | 1.61 | 0.00 | 1.10 | -17.01 | 207.90 | 36.62 | 235.86 | 0.6915 | 545.0 | 535.5 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -17.81 | 207.65 | 36.37 | 234.69 | 0.6942 | 454.0 | 437.5 | |
| 0.00 | 1.52 | 0.00 | 0.99 | -13.90 | 206.53 | 35.26 | 238.89 | 0.6568 | -726.0 | -592.9 | |
| 2.41 | 14.65 | 1.58 | 9.55 | -14.29 | 206.11 | 34.83 | 238.07 | 0.6545 | -604.1 | -463.5 | |
| 9.11 | -28.00 | 5.94 | -28.00 | -14.28 | 205.91 | 34.64 | 237.94 | 0.6523 | -819.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -16.77 | 205.66 | 34.39 | 234.51 | 0.6665 | 145.0 | 4.6 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -16.27 | 205.11 | 33.83 | 234.71 | 0.6571 | -216.0 | -190.5 | |
| 4.29 | 6.43 | 2.76 | 4.14 | -14.79 | 204.53 | 33.26 | 236.20 | 0.6404 | 790.2 | 396.4 | |
| 0.00 | 1.34 | 0.00 | 0.88 | -16.73 | 204.78 | 33.51 | 233.86 | 0.6570 | -727.0 | -582.9 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -16.33 | 204.59 | 33.31 | 234.22 | 0.6519 | -745.0 | -687.2 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -14.37 | 204.09 | 32.81 | 236.41 | 0.6324 | 445.0 | 478.8 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -17.23 | 204.39 | 33.11 | 232.90 | 0.6565 | -593.0 | -385.8 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -15.23 | 203.94 | 32.66 | 235.13 | 0.6370 | 828.0 | 679.4 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -11.81 | 203.30 | 32.03 | 239.37 | 0.6056 | -668.0 | -468.1 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -13.87 | 203.41 | 32.14 | 236.55 | 0.6213 | -737.0 | -636.0 | |
| 0.00 | 2.05 | 0.00 | 1.34 | -17.76 | 203.48 | 32.20 | 231.48 | 0.6510 | -564.0 | -464.3 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -17.42 | 203.33 | 32.06 | 231.78 | 0.6469 | -671.0 | -529.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -17.68 | 203.23 | 31.96 | 231.37 | 0.6479 | -640.0 | -555.3 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -18.48 | 203.32 | 32.05 | 230.45 | 0.6550 | -495.0 | -445.0 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -18.28 | 203.24 | 31.97 | 230.63 | 0.6526 | -651.0 | -524.6 | |
| 0.27 | 49.21 | 0.17 | 31.38 | -16.59 | 202.77 | 31.49 | 232.36 | 0.6345 | -622.7 | -332.5 | |
| 3.48 | -45.00 | 2.22 | -45.00 | -16.47 | 202.56 | 31.29 | 232.33 | 0.6314 | -958.3 | 999999 | |
| 1.70 | -45.00 | 1.08 | -45.00 | -16.56 | 202.32 | 31.04 | 232.01 | 0.6295 | -974.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.12 | -15.53 | 202.14 | 30.87 | 233.21 | 0.6195 | -607.0 | -430.0 | |
| 0.00 | 1.43 | 0.00 | 0.92 | -18.03 | 202.56 | 31.28 | 230.34 | 0.6436 | -449.0 | -419.6 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -17.15 | 202.31 | 31.04 | 231.24 | 0.6341 | -547.0 | -398.2 | |
| 2.41 | -45.00 | 1.53 | -45.00 | -16.74 | 202.17 | 30.89 | 231.63 | 0.6293 | -878.3 | 999999 | |
| 0.00 | 12.68 | 0.00 | 8.01 | -16.05 | 202.04 | 30.77 | 232.44 | 0.6225 | -675.0 | -512.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -17.75 | 202.32 | 31.04 | 230.49 | 0.6389 | -618.0 | -502.8 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -15.41 | 201.90 | 30.63 | 233.15 | 0.6160 | -254.0 | -274.3 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -14.42 | 201.64 | 30.36 | 234.26 | 0.6053 | -704.0 | -581.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -15.77 | 201.85 | 30.58 | 232.63 | 0.6182 | -662.0 | -524.7 | |
| 0.00 | 2.32 | 0.00 | 1.45 | -14.81 | 201.62 | 30.35 | 233.72 | 0.6082 | -781.0 | -608.1 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -18.10 | 202.12 | 30.85 | 229.87 | 0.6398 | -501.0 | -427.6 | |
| 9.20 | 31.79 | 5.77 | 19.93 | -16.03 | 201.38 | 30.11 | 231.86 | 0.6153 | -962.1 | -700.4 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -18.53 | 201.58 | 30.30 | 228.84 | 0.6378 | -511.0 | -417.7 | |
| 5.54 | -59.00 | 3.47 | -59.00 | -16.24 | 201.05 | 29.78 | 231.28 | 0.6134 | -926.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -16.50 | 201.06 | 29.79 | 230.94 | 0.6157 | -378.0 | -341.2 | |
| 0.63 | 108.77 | 0.39 | 67.01 | -15.60 | 200.84 | 29.57 | 231.93 | 0.6059 | -739.7 | -511.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -18.64 | 201.34 | 30.07 | 228.48 | 0.6364 | -713.0 | -623.8 | |
| 1.70 | -63.00 | 1.05 | -63.00 | -15.46 | 200.68 | 29.40 | 231.96 | 0.6030 | -827.3 | 999999 | |
| 3.30 | -63.00 | 2.03 | -63.00 | -14.80 | 200.50 | 29.23 | 232.70 | 0.5957 | -977.8 | 999999 | |
| 2.77 | -63.00 | 1.71 | -63.00 | -14.96 | 200.45 | 29.18 | 232.44 | 0.5964 | -1147.0 | 999999 | |
| 15.54 | -63.00 | 9.59 | -63.00 | -15.22 | 200.46 | 29.18 | 232.09 | 0.5986 | -1087.8 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.06 | -17.92 | 199.96 | 28.69 | 228.07 | 0.6162 | -709.0 | -608.6 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -17.76 | 195.18 | 23.91 | 223.12 | 0.5669 | -711.0 | -651.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
