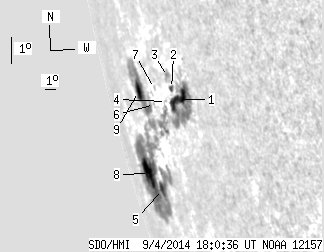

SDO HMI 2014-09-04 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.38 | 332.40 | 144.93 | 881.42 | -13.89 | 94.29 | -76.98 | 105.70 | 0.9820 | 43.3 | -64.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.22 | 322.66 | 33.69 | 862.12 | -11.92 | 98.96 | -72.32 | 104.57 | 0.9644 | 457.6 | -64.5 | |
| 1.61 | 2.50 | 3.06 | 4.75 | -11.64 | 98.41 | -72.86 | 104.18 | 0.9665 | 135.3 | 119.2 | |
| 0.00 | 4.38 | 0.00 | 8.39 | -11.29 | 98.22 | -73.05 | 103.79 | 0.9670 | -188.0 | -182.0 | |
| 0.00 | 1.07 | 0.00 | 2.17 | -12.17 | 97.49 | -73.79 | 104.54 | 0.9708 | 97.0 | 39.8 | |
| 5.89 | -1.00 | 16.76 | -1.00 | -15.42 | 93.77 | -77.50 | 107.13 | 0.9856 | 120.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 1.44 | -12.47 | 95.82 | -75.46 | 104.54 | 0.9773 | 160.0 | 95.6 | |
| 0.00 | 1.16 | 0.00 | 2.55 | -11.91 | 96.29 | -74.98 | 104.05 | 0.9752 | 204.0 | 128.7 | |
| 20.09 | -1.00 | 68.44 | -1.00 | -15.12 | 92.12 | -79.15 | 106.55 | 0.9897 | -154.1 | 999999 | |
| 8.57 | -1.00 | 22.98 | -1.00 | -12.31 | 93.80 | -77.47 | 104.02 | 0.9839 | -48.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
