SDO HMI 2014-09-04 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.52 | 599.20 | 72.02 | 401.02 | -14.81 | 206.84 | 36.12 | 237.97 | 0.6725 | -39.7 | 67.7 | |
|
previous
or next observation for the same group /

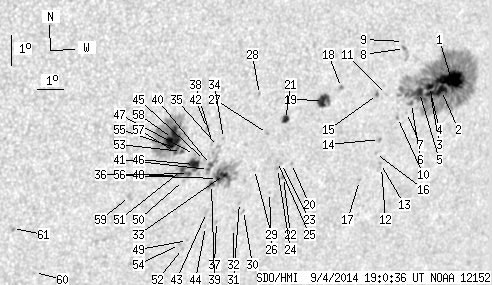

back to the solar disc SDO HMI 2014-09-04 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.58 | 319.79 | 20.08 | 223.71 | -14.01 | 210.90 | 40.18 | 241.95 | 0.7116 | 1143.2 | 388.8 | |
| 6.79 | -1.00 | 4.76 | -1.00 | -14.34 | 210.56 | 39.84 | 241.34 | 0.7097 | 928.2 | 999999 | |
| 3.04 | -1.00 | 2.12 | -1.00 | -14.40 | 210.13 | 39.41 | 241.00 | 0.7054 | 1000.4 | 999999 | |
| 3.75 | -1.00 | 2.61 | -1.00 | -14.16 | 210.04 | 39.32 | 241.24 | 0.7031 | 1178.5 | 999999 | |
| 5.18 | -1.00 | 3.58 | -1.00 | -14.33 | 209.67 | 38.95 | 240.80 | 0.7000 | 1019.8 | 999999 | |
| 0.98 | -1.00 | 0.68 | -1.00 | -14.66 | 209.42 | 38.70 | 240.22 | 0.6992 | 756.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -14.94 | 209.28 | 38.56 | 239.77 | 0.6993 | 693.0 | 627.0 | |
| 0.54 | 6.61 | 0.36 | 4.47 | -12.84 | 208.79 | 38.07 | 242.19 | 0.6820 | -478.0 | 338.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -12.61 | 208.71 | 37.98 | 242.45 | 0.6798 | -492.0 | -415.4 | |
| 0.00 | 1.61 | 0.00 | 1.11 | -15.07 | 208.94 | 38.22 | 239.39 | 0.6965 | 748.0 | 640.9 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -14.28 | 208.34 | 37.62 | 240.02 | 0.6853 | 684.0 | 581.3 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -16.68 | 208.66 | 37.94 | 237.18 | 0.7032 | 278.0 | 327.8 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -16.55 | 208.59 | 37.87 | 237.30 | 0.7016 | 774.0 | 632.5 | |
| 0.00 | 1.88 | 0.00 | 1.29 | -15.74 | 208.37 | 37.65 | 238.16 | 0.6944 | 826.0 | 722.7 | |
| 0.63 | 1.79 | 0.42 | 1.20 | -14.25 | 207.98 | 37.26 | 239.82 | 0.6812 | 773.3 | 645.4 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -16.20 | 208.31 | 37.59 | 237.55 | 0.6965 | 496.0 | 464.5 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -17.05 | 207.87 | 37.15 | 236.18 | 0.6972 | 639.0 | 559.4 | |
| 0.00 | 1.61 | 0.00 | 1.06 | -13.91 | 206.52 | 35.80 | 239.27 | 0.6629 | -726.0 | -598.8 | |
| 10.18 | 14.73 | 6.68 | 9.68 | -14.28 | 205.90 | 35.18 | 238.33 | 0.6583 | -793.5 | -485.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -16.27 | 205.05 | 34.33 | 235.10 | 0.6624 | -316.0 | -260.4 | |
| 3.75 | 5.27 | 2.43 | 3.41 | -14.79 | 204.54 | 33.82 | 236.63 | 0.6467 | 818.3 | 552.1 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -16.71 | 204.83 | 34.11 | 234.36 | 0.6632 | -612.0 | -541.0 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -16.24 | 204.66 | 33.94 | 234.84 | 0.6581 | -640.0 | -532.1 | |
| 0.00 | 1.52 | 0.00 | 1.00 | -16.39 | 204.54 | 33.82 | 234.54 | 0.6579 | -745.0 | -599.4 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -16.16 | 204.50 | 33.78 | 234.80 | 0.6557 | -650.0 | -509.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -17.17 | 204.39 | 33.67 | 233.43 | 0.6619 | -437.0 | -421.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -15.20 | 203.94 | 33.22 | 235.61 | 0.6429 | 832.0 | 704.3 | |
| 0.00 | 1.79 | 0.00 | 1.13 | -13.90 | 203.42 | 32.70 | 236.95 | 0.6279 | -759.0 | -592.0 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -16.36 | 203.66 | 32.94 | 233.88 | 0.6483 | 442.0 | 352.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -17.70 | 203.52 | 32.80 | 232.05 | 0.6567 | -571.0 | -493.8 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -17.42 | 203.31 | 32.59 | 232.23 | 0.6524 | -586.0 | -484.9 | |
| 0.00 | 1.79 | 0.00 | 1.17 | -18.28 | 203.26 | 32.54 | 231.11 | 0.6584 | -625.0 | -473.8 | |
| 3.66 | 48.94 | 2.35 | 31.39 | -16.44 | 202.56 | 31.84 | 232.84 | 0.6371 | -925.7 | -312.9 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.25 | 202.31 | 31.59 | 234.21 | 0.6253 | 368.0 | 288.2 | |
| 0.00 | 1.88 | 0.00 | 1.19 | -15.50 | 202.17 | 31.45 | 233.75 | 0.6257 | -629.0 | -468.9 | |
| 1.79 | -33.00 | 1.14 | -33.00 | -16.56 | 202.32 | 31.60 | 232.49 | 0.6354 | -904.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -18.00 | 202.56 | 31.84 | 230.87 | 0.6491 | -613.0 | -511.7 | |
| 0.00 | 2.05 | 0.00 | 1.30 | -15.38 | 201.93 | 31.21 | 233.70 | 0.6222 | -311.0 | -207.4 | |
| 1.88 | -33.00 | 1.20 | -33.00 | -16.74 | 202.13 | 31.41 | 232.09 | 0.6348 | -874.5 | 999999 | |
| 1.25 | 13.31 | 0.79 | 8.45 | -16.07 | 201.97 | 31.25 | 232.82 | 0.6280 | -735.8 | -421.1 | |
| 0.89 | -40.00 | 0.57 | -40.00 | -16.23 | 201.93 | 31.21 | 232.57 | 0.6287 | -867.6 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.46 | -14.88 | 201.66 | 30.94 | 234.15 | 0.6154 | -763.0 | -612.3 | |
| 0.00 | 2.41 | 0.00 | 1.55 | -17.67 | 202.12 | 31.40 | 230.90 | 0.6420 | -714.0 | -465.9 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -18.14 | 202.18 | 31.46 | 230.36 | 0.6463 | -580.0 | -419.7 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -15.93 | 201.73 | 31.01 | 232.80 | 0.6242 | -698.0 | -594.0 | |
| 8.22 | 28.49 | 5.18 | 17.95 | -16.03 | 201.38 | 30.66 | 232.35 | 0.6212 | -1008.9 | -728.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -15.70 | 201.32 | 30.60 | 232.74 | 0.6180 | -630.0 | -477.0 | |
| 1.79 | -46.00 | 1.13 | -46.00 | -16.32 | 201.21 | 30.49 | 231.82 | 0.6217 | -892.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -18.56 | 201.59 | 30.87 | 229.31 | 0.6438 | -758.0 | -589.4 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -16.54 | 201.06 | 30.34 | 231.40 | 0.6219 | -387.0 | -338.9 | |
| 2.14 | -46.00 | 1.35 | -46.00 | -16.17 | 200.96 | 30.24 | 231.80 | 0.6178 | -1000.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -18.82 | 201.46 | 30.74 | 228.87 | 0.6445 | -479.0 | -511.9 | |
| 0.89 | 110.11 | 0.56 | 68.21 | -15.57 | 200.83 | 30.11 | 232.47 | 0.6116 | -687.8 | -513.8 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.68 | 201.31 | 30.59 | 228.92 | 0.6419 | -640.0 | -526.1 | |
| 1.34 | -53.00 | 0.83 | -53.00 | -15.46 | 200.67 | 29.95 | 232.47 | 0.6089 | -827.3 | 999999 | |
| 0.71 | -46.00 | 0.45 | -46.00 | -16.35 | 200.81 | 30.09 | 231.41 | 0.6177 | -772.6 | 999999 | |
| 0.71 | -53.00 | 0.45 | -53.00 | -15.59 | 200.61 | 29.89 | 232.25 | 0.6094 | -666.2 | 999999 | |
| 19.83 | -53.00 | 12.30 | -53.00 | -15.12 | 200.43 | 29.71 | 232.71 | 0.6036 | -1092.7 | 999999 | |
| 0.00 | 3.66 | 0.00 | 2.27 | -16.94 | 199.17 | 28.45 | 229.09 | 0.6053 | -4.0 | 122.9 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -19.28 | 196.17 | 25.45 | 223.00 | 0.5969 | -530.0 | -437.9 | |
| 0.00 | 1.96 | 0.00 | 1.18 | -17.75 | 195.15 | 24.43 | 223.74 | 0.5720 | -764.0 | -545.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
