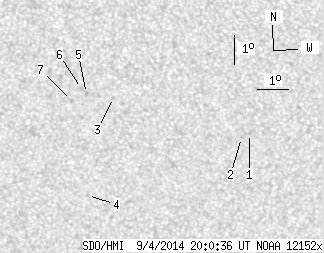

SDO HMI 2014-09-04 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.57 | 0.00 | 4.77 | -19.93 | 168.48 | -1.68 | 176.47 | 0.4605 | 725.1 | 554.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.58 | 172.48 | 2.31 | 184.62 | 0.4700 | 722.0 | 568.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.71 | 172.22 | 2.05 | 184.09 | 0.4717 | 670.0 | 527.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.35 | 168.10 | -2.07 | 175.65 | 0.4506 | 722.0 | 463.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.72 | 167.20 | -2.97 | 174.53 | 0.5035 | 722.0 | 507.0 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -19.21 | 167.24 | -2.93 | 173.82 | 0.4498 | 845.0 | 733.6 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -19.05 | 167.08 | -3.09 | 173.44 | 0.4474 | 806.0 | 567.9 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.45 | 166.75 | -3.41 | 172.87 | 0.4543 | 589.0 | 465.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
