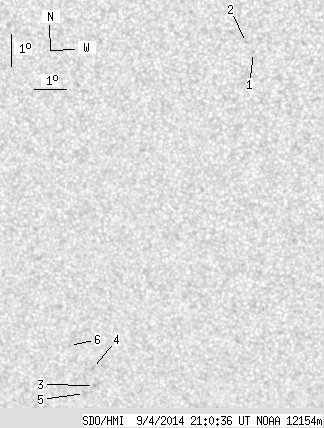

SDO HMI 2014-09-04 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.01 | 0.00 | 4.93 | -13.58 | 156.76 | -12.85 | 148.27 | 0.4138 | 803.0 | 616.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.46 | -5.35 | 161.27 | -8.34 | 146.31 | 0.2616 | 756.0 | 527.3 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -5.05 | 161.06 | -8.55 | 144.98 | 0.2594 | 812.0 | 616.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.08 | 155.85 | -13.76 | 149.77 | 0.4560 | 885.0 | 740.8 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -15.52 | 155.83 | -13.79 | 149.08 | 0.4488 | 881.0 | 674.9 | |
| 0.00 | 3.39 | 0.00 | 1.89 | -16.35 | 155.51 | -14.11 | 149.47 | 0.4623 | 717.0 | 585.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -14.79 | 155.13 | -14.48 | 146.93 | 0.4449 | 767.0 | 595.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
