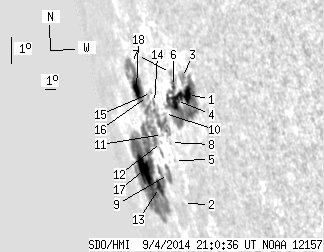

SDO HMI 2014-09-04 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.46 | 392.84 | 130.71 | 904.26 | -13.96 | 94.02 | -75.59 | 106.03 | 0.9777 | 17.3 | -133.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.77 | 96.45 | 12.53 | 162.86 | -11.73 | 99.66 | -69.96 | 104.85 | 0.9530 | 687.1 | 240.6 | |
| 0.00 | 1.07 | 0.00 | 2.20 | -15.60 | 96.37 | -73.25 | 108.11 | 0.9715 | 175.0 | 151.8 | |
| 0.00 | 6.07 | 0.00 | 9.84 | -11.21 | 99.49 | -70.12 | 104.29 | 0.9533 | 14.0 | 45.5 | |
| 9.29 | -1.00 | 16.06 | -1.00 | -12.07 | 98.41 | -71.20 | 104.95 | 0.9594 | 416.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.76 | -14.19 | 96.64 | -72.97 | 106.75 | 0.9692 | 344.0 | 275.3 | |
| 1.25 | -1.00 | 2.16 | -1.00 | -11.63 | 98.40 | -71.22 | 104.50 | 0.9591 | 216.4 | 999999 | |
| 0.00 | 2.23 | 0.00 | 3.83 | -11.19 | 98.37 | -71.24 | 104.04 | 0.9588 | -241.0 | -208.5 | |
| 0.00 | 1.07 | 0.00 | 2.10 | -13.61 | 96.69 | -72.93 | 106.17 | 0.9685 | 404.0 | 364.1 | |
| 0.00 | 9.11 | 0.00 | 19.65 | -14.78 | 95.44 | -74.18 | 107.11 | 0.9744 | 463.0 | 375.3 | |
| 0.00 | 1.16 | 0.00 | 2.22 | -12.68 | 96.77 | -72.85 | 105.24 | 0.9674 | -427.0 | -363.0 | |
| 0.00 | 1.43 | 0.00 | 2.93 | -13.45 | 95.94 | -73.67 | 105.86 | 0.9714 | -414.0 | -376.4 | |
| 0.00 | 0.27 | 0.00 | 0.57 | -13.75 | 95.57 | -74.04 | 106.09 | 0.9731 | -98.0 | -141.0 | |
| 6.34 | 268.36 | 15.77 | 686.44 | -15.42 | 93.66 | -75.95 | 107.41 | 0.9810 | 107.7 | -239.7 | |
| 0.00 | 1.88 | 0.00 | 3.83 | -12.45 | 95.85 | -73.77 | 104.83 | 0.9710 | 136.0 | 133.1 | |
| 0.00 | 0.71 | 0.00 | 1.46 | -12.15 | 95.74 | -73.87 | 104.50 | 0.9711 | 169.0 | 150.0 | |
| 0.00 | 2.14 | 0.00 | 4.57 | -12.35 | 95.12 | -74.50 | 104.59 | 0.9737 | -478.0 | -426.1 | |
| 21.61 | -13.00 | 62.51 | -13.00 | -15.05 | 92.00 | -77.62 | 106.74 | 0.9857 | -196.7 | 999999 | |
| 9.20 | -13.00 | 21.68 | -13.00 | -12.29 | 93.82 | -75.80 | 104.30 | 0.9784 | -126.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
