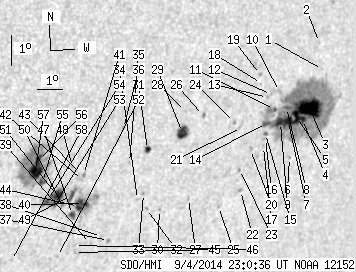

SDO HMI 2014-09-04 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.14 | 525.35 | 86.48 | 363.91 | -14.70 | 207.07 | 38.56 | 239.79 | 0.6980 | 40.7 | 65.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.45 | -12.78 | 211.18 | 42.67 | 244.88 | 0.7323 | 553.0 | 509.1 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -11.89 | 210.88 | 42.37 | 245.86 | 0.7250 | -513.0 | -414.0 | |
| 30.55 | 290.46 | 22.23 | 210.68 | -13.97 | 210.89 | 42.38 | 243.24 | 0.7349 | 982.0 | 336.4 | |
| 2.68 | -3.00 | 1.95 | -3.00 | -14.34 | 210.68 | 42.17 | 242.66 | 0.7345 | 725.6 | 999999 | |
| 7.77 | -3.00 | 5.62 | -3.00 | -14.22 | 210.40 | 41.89 | 242.66 | 0.7310 | 1036.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -15.55 | 210.42 | 41.91 | 241.03 | 0.7379 | 437.0 | 425.0 | |
| 8.04 | -3.00 | 5.79 | -3.00 | -14.35 | 210.10 | 41.58 | 242.32 | 0.7284 | 936.1 | 999999 | |
| 1.25 | -3.00 | 0.90 | -3.00 | -13.88 | 209.91 | 41.40 | 242.80 | 0.7241 | 670.5 | 999999 | |
| 6.34 | -3.00 | 4.54 | -3.00 | -14.35 | 209.76 | 41.25 | 242.13 | 0.7249 | 952.7 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.90 | -13.33 | 209.50 | 40.99 | 243.27 | 0.7169 | 400.0 | 340.9 | |
| 0.98 | -3.00 | 0.70 | -3.00 | -13.90 | 209.41 | 40.90 | 242.50 | 0.7189 | 931.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -13.40 | 209.19 | 40.67 | 243.00 | 0.7139 | 659.0 | 624.8 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -13.49 | 209.04 | 40.53 | 242.81 | 0.7127 | 741.0 | 666.4 | |
| 3.30 | -3.00 | 2.35 | -3.00 | -14.34 | 209.18 | 40.67 | 241.82 | 0.7186 | 863.0 | 999999 | |
| 0.71 | 1.70 | 0.51 | 1.21 | -14.66 | 209.21 | 40.70 | 241.42 | 0.7207 | 724.1 | 629.2 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -14.83 | 209.25 | 40.74 | 241.24 | 0.7219 | 533.0 | 493.8 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -15.08 | 209.22 | 40.71 | 240.91 | 0.7230 | 600.0 | 469.6 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -13.01 | 208.70 | 40.19 | 243.23 | 0.7065 | -383.0 | -228.1 | |
| 0.00 | 1.52 | 0.00 | 1.06 | -12.71 | 208.60 | 40.09 | 243.56 | 0.7039 | -602.0 | -483.6 | |
| 0.00 | 1.97 | 0.00 | 1.39 | -15.14 | 208.70 | 40.19 | 240.53 | 0.7178 | 647.0 | 532.1 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -14.38 | 208.16 | 39.65 | 241.16 | 0.7080 | 471.0 | 497.5 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -16.46 | 208.60 | 40.09 | 238.82 | 0.7242 | 675.0 | 554.9 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -15.76 | 208.39 | 39.88 | 239.56 | 0.7180 | 702.0 | 584.2 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -14.19 | 207.84 | 39.33 | 241.20 | 0.7034 | 669.0 | 627.9 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -16.92 | 207.81 | 39.30 | 237.77 | 0.7187 | 578.0 | 532.7 | |
| 0.00 | 1.43 | 0.00 | 0.97 | -13.85 | 206.53 | 38.02 | 240.82 | 0.6873 | -554.0 | -483.9 | |
| 0.00 | 1.25 | 0.00 | 0.87 | -16.55 | 206.51 | 37.99 | 237.37 | 0.7030 | 435.0 | 418.1 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -13.66 | 205.79 | 37.27 | 240.58 | 0.6779 | -503.0 | -434.9 | |
| 9.65 | 12.77 | 6.52 | 8.63 | -14.34 | 205.80 | 37.29 | 239.70 | 0.6821 | -713.0 | -455.9 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -16.82 | 205.41 | 36.90 | 236.28 | 0.6933 | -376.0 | -373.3 | |
| 2.86 | 4.02 | 1.90 | 2.68 | -14.79 | 204.52 | 36.01 | 238.24 | 0.6708 | 678.2 | 511.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -16.74 | 204.88 | 36.37 | 236.00 | 0.6873 | -549.0 | -476.3 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -16.23 | 204.65 | 36.14 | 236.48 | 0.6816 | -656.0 | -581.0 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -16.42 | 204.46 | 35.95 | 236.11 | 0.6807 | -703.0 | -528.5 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -15.16 | 203.89 | 35.38 | 237.30 | 0.6664 | 708.0 | 604.6 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -14.03 | 203.46 | 34.94 | 238.48 | 0.6541 | -696.0 | -611.7 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -17.70 | 203.61 | 35.10 | 233.87 | 0.6805 | -582.0 | -502.0 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -17.54 | 203.30 | 34.79 | 233.83 | 0.6763 | -655.0 | -530.2 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -17.75 | 202.92 | 34.41 | 233.28 | 0.6738 | -406.0 | -417.4 | |
| 5.27 | 48.59 | 3.46 | 31.85 | -16.39 | 202.37 | 33.86 | 234.57 | 0.6583 | -817.5 | -305.3 | |
| 0.00 | 1.61 | 0.00 | 1.05 | -15.42 | 202.19 | 33.68 | 235.67 | 0.6496 | -536.0 | -446.5 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -15.62 | 202.19 | 33.68 | 235.42 | 0.6509 | -449.0 | -318.5 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -15.42 | 202.11 | 33.60 | 235.62 | 0.6487 | -543.0 | -543.4 | |
| 4.56 | -40.00 | 2.99 | -40.00 | -16.47 | 202.20 | 33.69 | 234.32 | 0.6571 | -849.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -18.00 | 202.36 | 33.85 | 232.52 | 0.6699 | -614.0 | -530.2 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -17.77 | 202.31 | 33.80 | 232.77 | 0.6677 | -500.0 | -479.4 | |
| 2.41 | -40.00 | 1.58 | -40.00 | -16.72 | 202.02 | 33.51 | 233.86 | 0.6570 | -764.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.92 | -15.13 | 201.72 | 33.21 | 235.69 | 0.6424 | -701.0 | -536.4 | |
| 3.04 | -40.00 | 1.98 | -40.00 | -16.09 | 201.86 | 33.35 | 234.55 | 0.6507 | -758.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.10 | -16.39 | 201.58 | 33.07 | 233.92 | 0.6499 | -648.0 | -505.5 | |
| 9.74 | 23.67 | 6.29 | 15.29 | -16.05 | 201.32 | 32.81 | 234.17 | 0.6447 | -937.8 | -719.5 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -18.09 | 201.73 | 33.22 | 231.90 | 0.6641 | -647.0 | -570.2 | |
| 1.61 | -51.00 | 1.04 | -51.00 | -16.34 | 201.27 | 32.76 | 233.74 | 0.6462 | -786.7 | 999999 | |
| 2.86 | -51.00 | 1.84 | -51.00 | -16.21 | 200.94 | 32.43 | 233.63 | 0.6418 | -896.3 | 999999 | |
| 3.22 | 101.20 | 2.05 | 64.15 | -15.54 | 200.67 | 32.16 | 234.29 | 0.6339 | -701.4 | -520.4 | |
| 5.72 | -55.00 | 3.62 | -55.00 | -14.84 | 200.41 | 31.90 | 235.01 | 0.6257 | -995.0 | 999999 | |
| 13.58 | -55.00 | 8.62 | -55.00 | -15.19 | 200.35 | 31.84 | 234.49 | 0.6278 | -1055.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -18.10 | 200.00 | 31.49 | 230.43 | 0.6464 | -499.0 | -375.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
