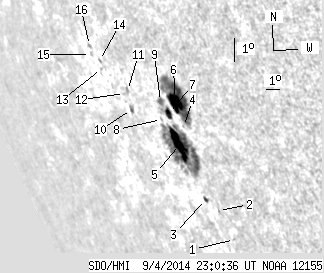

SDO HMI 2014-09-04 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.45 | 197.94 | 56.10 | 240.60 | -19.44 | 107.21 | -61.30 | 115.09 | 0.9149 | 507.2 | 243.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-04 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.32 | -23.10 | 108.72 | -59.79 | 119.38 | 0.9140 | -254.0 | -222.7 | |
| 0.00 | 1.07 | 0.00 | 1.30 | -22.15 | 108.35 | -60.16 | 118.28 | 0.9140 | 454.0 | 397.0 | |
| 1.07 | 2.14 | 1.32 | 2.64 | -21.85 | 107.70 | -60.81 | 117.75 | 0.9173 | 344.8 | 279.8 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -19.39 | 107.91 | -60.60 | 115.26 | 0.9104 | 405.0 | 463.0 | |
| 22.42 | 101.47 | 27.52 | 124.55 | -20.07 | 107.20 | -61.31 | 115.74 | 0.9164 | 566.2 | 177.1 | |
| 17.06 | 67.35 | 20.09 | 78.89 | -18.60 | 107.87 | -60.64 | 114.42 | 0.9089 | 781.5 | 449.9 | |
| 4.56 | 8.49 | 5.53 | 10.33 | -19.05 | 107.13 | -61.38 | 114.65 | 0.9147 | 469.6 | 118.8 | |
| 0.00 | 1.52 | 0.00 | 1.89 | -19.32 | 106.47 | -62.04 | 114.74 | 0.9194 | 83.0 | 61.9 | |
| 1.34 | 4.82 | 1.64 | 5.89 | -18.69 | 106.82 | -61.69 | 114.18 | 0.9159 | -118.1 | -47.1 | |
| 0.00 | 3.66 | 0.00 | 4.93 | -19.23 | 104.39 | -64.12 | 114.03 | 0.9317 | 229.0 | 205.4 | |
| 0.00 | 2.32 | 0.00 | 3.09 | -18.59 | 104.56 | -63.95 | 113.41 | 0.9296 | 195.0 | 155.4 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -18.73 | 104.24 | -64.27 | 113.46 | 0.9316 | 336.0 | 367.7 | |
| 0.00 | 0.27 | 0.00 | 0.38 | -18.05 | 102.98 | -65.53 | 112.42 | 0.9377 | -423.0 | -371.3 | |
| 0.00 | 1.16 | 0.00 | 1.63 | -17.79 | 103.01 | -65.50 | 112.16 | 0.9371 | -441.0 | -366.3 | |
| 0.00 | 0.98 | 0.00 | 1.41 | -17.67 | 102.40 | -66.11 | 111.87 | 0.9403 | -355.0 | -300.3 | |
| 0.00 | 1.88 | 0.00 | 2.67 | -17.36 | 102.54 | -65.97 | 111.59 | 0.9390 | -335.0 | -272.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
