SDO HMI 2014-09-05 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.26 | 260.31 | 72.76 | 620.45 | 15.06 | 87.41 | -78.90 | 76.11 | 0.9769 | 277.2 | -142.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

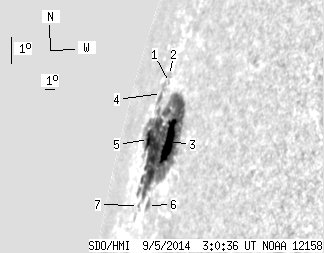

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 3.47 | 16.67 | 85.79 | -80.52 | 74.35 | 0.9821 | 125.0 | 76.5 | |
| 0.00 | 2.86 | 0.00 | 7.57 | 16.85 | 85.45 | -80.86 | 74.14 | 0.9831 | 2.0 | -49.1 | |
| 28.15 | 241.90 | 61.12 | 572.36 | 15.09 | 88.06 | -78.25 | 76.13 | 0.9747 | 463.5 | -136.9 | |
| 0.00 | 8.13 | 0.00 | 22.55 | 16.23 | 84.99 | -81.32 | 74.74 | 0.9847 | -127.0 | -200.1 | |
| 4.11 | -3.00 | 11.64 | -3.00 | 14.77 | 84.91 | -81.40 | 76.21 | 0.9853 | -513.5 | 999999 | |
| 0.00 | 4.74 | 0.00 | 11.01 | 12.99 | 87.30 | -79.01 | 78.21 | 0.9781 | -434.0 | -373.5 | |
| 0.00 | 1.34 | 0.00 | 3.49 | 12.82 | 85.92 | -80.39 | 78.27 | 0.9827 | -361.0 | -316.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
