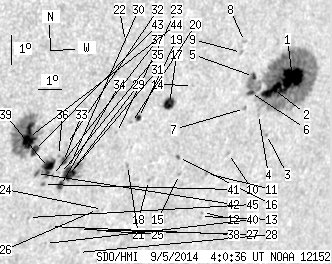

SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.39 | 464.14 | 77.55 | 336.34 | -14.67 | 207.27 | 41.51 | 241.64 | 0.7290 | -20.1 | 106.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.15 | 273.74 | 21.49 | 208.10 | -14.00 | 210.85 | 45.09 | 244.60 | 0.7630 | 1013.9 | 352.7 | |
| 15.10 | -1.00 | 11.40 | -1.00 | -14.31 | 210.09 | 44.33 | 243.84 | 0.7567 | 955.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.96 | -15.78 | 210.17 | 44.41 | 242.11 | 0.7642 | 193.0 | 307.2 | |
| 0.00 | 1.25 | 0.00 | 0.94 | -15.08 | 209.63 | 43.87 | 242.67 | 0.7556 | 135.0 | 197.1 | |
| 1.97 | -1.00 | 1.45 | -1.00 | -13.80 | 209.10 | 43.34 | 243.95 | 0.7442 | 887.5 | 999999 | |
| 2.14 | -1.00 | 1.59 | -1.00 | -14.32 | 209.10 | 43.34 | 243.32 | 0.7465 | 756.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.33 | -14.82 | 208.96 | 43.20 | 242.63 | 0.7475 | 508.0 | 553.2 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -12.62 | 208.46 | 42.70 | 245.10 | 0.7319 | -617.0 | -426.3 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -12.97 | 208.41 | 42.65 | 244.63 | 0.7329 | -169.0 | -168.4 | |
| 0.00 | 1.34 | 0.00 | 1.00 | -16.26 | 208.65 | 42.88 | 240.71 | 0.7513 | 320.0 | 354.7 | |
| 0.00 | 1.52 | 0.00 | 1.13 | -16.84 | 207.86 | 42.10 | 239.57 | 0.7465 | 286.0 | 280.1 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -18.14 | 208.06 | 42.30 | 238.13 | 0.7553 | 444.0 | 474.5 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -18.27 | 208.01 | 42.25 | 237.95 | 0.7556 | 222.0 | 319.8 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -13.86 | 206.55 | 40.79 | 242.48 | 0.7174 | -299.0 | -392.9 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -16.77 | 206.70 | 40.94 | 238.97 | 0.7345 | 276.0 | 321.6 | |
| 0.45 | 1.34 | 0.32 | 0.97 | -16.20 | 206.51 | 40.75 | 239.55 | 0.7294 | 612.4 | 484.7 | |
| 8.13 | 10.90 | 5.71 | 7.66 | -14.37 | 205.71 | 39.95 | 241.35 | 0.7112 | -621.4 | -408.9 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -16.86 | 205.43 | 39.67 | 238.08 | 0.7221 | -257.0 | -336.6 | |
| 1.97 | 3.31 | 1.36 | 2.29 | -14.72 | 204.53 | 38.77 | 240.17 | 0.7004 | 625.2 | 499.5 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -14.87 | 204.28 | 38.52 | 239.83 | 0.6985 | 616.0 | 527.9 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -16.28 | 204.43 | 38.67 | 238.15 | 0.7084 | -319.0 | -350.0 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -12.20 | 203.54 | 37.78 | 242.85 | 0.6752 | -512.0 | -533.2 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -15.15 | 203.74 | 37.98 | 239.12 | 0.6944 | 547.0 | 398.5 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -17.67 | 203.76 | 38.00 | 235.99 | 0.7100 | -477.0 | -530.2 | |
| 0.00 | 1.88 | 0.00 | 1.32 | -18.37 | 203.78 | 38.01 | 235.15 | 0.7145 | -671.0 | -546.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -17.65 | 203.55 | 37.79 | 235.87 | 0.7078 | -413.0 | -395.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -18.27 | 202.98 | 37.22 | 234.72 | 0.7059 | -598.0 | -511.4 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -19.05 | 203.15 | 37.38 | 233.90 | 0.7126 | -440.0 | -353.6 | |
| 4.65 | 29.58 | 3.15 | 20.07 | -16.32 | 202.17 | 36.41 | 236.56 | 0.6850 | -766.0 | -299.7 | |
| 1.43 | -29.00 | 0.97 | -29.00 | -16.18 | 202.06 | 36.30 | 236.66 | 0.6829 | -553.8 | 999999 | |
| 3.93 | -29.00 | 2.67 | -29.00 | -16.45 | 202.08 | 36.32 | 236.33 | 0.6848 | -881.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -15.38 | 201.82 | 36.06 | 237.51 | 0.6752 | -343.0 | -325.8 | |
| 2.50 | 6.61 | 1.68 | 4.45 | -15.94 | 201.82 | 36.05 | 236.79 | 0.6787 | -677.5 | -453.5 | |
| 3.31 | -29.00 | 2.24 | -29.00 | -16.73 | 201.87 | 36.11 | 235.83 | 0.6844 | -631.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -16.33 | 201.78 | 36.02 | 236.27 | 0.6809 | -702.0 | -567.5 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -15.72 | 201.58 | 35.82 | 236.90 | 0.6747 | -362.0 | -459.2 | |
| 0.00 | 1.52 | 0.00 | 1.02 | -16.37 | 201.48 | 35.72 | 236.00 | 0.6779 | -489.0 | -511.3 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -18.07 | 201.78 | 36.02 | 234.10 | 0.6925 | -563.0 | -491.3 | |
| 10.90 | 17.78 | 7.29 | 11.89 | -16.09 | 201.26 | 35.50 | 236.20 | 0.6738 | -925.3 | -656.0 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -18.64 | 201.72 | 35.96 | 233.37 | 0.6957 | -460.0 | -424.1 | |
| 0.00 | 1.79 | 0.00 | 1.20 | -16.64 | 201.19 | 35.42 | 235.44 | 0.6767 | -607.0 | -431.6 | |
| 0.00 | 2.68 | 0.00 | 1.78 | -16.25 | 200.83 | 35.07 | 235.67 | 0.6703 | -844.0 | -723.5 | |
| 4.83 | 85.62 | 3.18 | 55.98 | -15.48 | 200.60 | 34.84 | 236.49 | 0.6626 | -670.9 | -550.9 | |
| 19.93 | -43.00 | 13.05 | -43.00 | -15.03 | 200.29 | 34.53 | 236.84 | 0.6562 | -1012.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -17.70 | 200.84 | 35.07 | 233.85 | 0.6803 | 84.0 | 175.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
