SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.28 | 511.45 | 159.76 | 908.68 | -13.99 | 94.00 | -71.76 | 106.79 | 0.9627 | -112.2 | -107.9 | |
|
previous
or next observation for the same group /

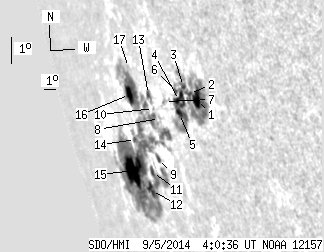

back to the solar disc SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.01 | 130.12 | 13.32 | 178.65 | -11.74 | 99.91 | -65.85 | 105.77 | 0.9300 | 801.8 | 303.8 | |
| 1.43 | -1.00 | 1.94 | -1.00 | -11.61 | 99.43 | -66.33 | 105.52 | 0.9327 | 519.3 | 999999 | |
| 1.43 | -1.00 | 1.97 | -1.00 | -11.43 | 99.04 | -66.72 | 105.25 | 0.9347 | 502.4 | 999999 | |
| 10.99 | -1.00 | 15.60 | -1.00 | -11.94 | 98.47 | -67.29 | 105.65 | 0.9388 | 269.7 | 999999 | |
| 4.11 | -1.00 | 5.93 | -1.00 | -12.38 | 98.24 | -67.52 | 106.06 | 0.9407 | 477.8 | 999999 | |
| 1.16 | -1.00 | 1.66 | -1.00 | -11.65 | 98.30 | -67.47 | 105.31 | 0.9394 | -56.1 | 999999 | |
| 0.00 | 2.95 | 0.00 | 4.47 | -12.13 | 97.11 | -68.65 | 105.55 | 0.9466 | -368.0 | -147.3 | |
| 0.00 | 1.16 | 0.00 | 1.84 | -12.77 | 96.30 | -69.46 | 106.03 | 0.9516 | -518.0 | -409.9 | |
| 2.14 | 3.40 | 3.66 | 5.80 | -14.17 | 95.27 | -70.49 | 107.24 | 0.9582 | 369.8 | 281.1 | |
| 0.00 | 0.89 | 0.00 | 1.45 | -12.50 | 95.93 | -69.83 | 105.67 | 0.9532 | 161.0 | 92.8 | |
| 2.86 | 371.95 | 5.20 | 714.75 | -14.74 | 94.25 | -71.51 | 107.61 | 0.9634 | 321.0 | -203.2 | |
| 8.13 | -11.00 | 15.47 | -11.00 | -15.40 | 93.60 | -72.16 | 108.14 | 0.9669 | 352.9 | 999999 | |
| 1.79 | -11.00 | 2.91 | -11.00 | -12.08 | 95.72 | -70.04 | 105.20 | 0.9538 | 260.4 | 999999 | |
| 2.06 | -11.00 | 3.94 | -11.00 | -13.81 | 93.25 | -72.51 | 106.46 | 0.9669 | -657.8 | 999999 | |
| 34.50 | -11.00 | 72.37 | -11.00 | -14.95 | 92.05 | -73.71 | 107.37 | 0.9727 | -484.4 | 999999 | |
| 8.67 | -11.00 | 15.79 | -11.00 | -12.33 | 93.73 | -72.03 | 105.04 | 0.9635 | -548.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.72 | -11.41 | 94.23 | -71.53 | 104.21 | 0.9604 | -206.0 | -220.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
