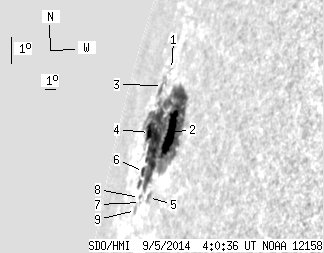

SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.25 | 268.37 | 84.63 | 611.11 | 14.94 | 87.23 | -78.54 | 76.26 | 0.9755 | 189.9 | -136.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 1.54 | 16.83 | 85.73 | -80.03 | 74.23 | 0.9805 | 243.0 | 200.7 | |
| 30.12 | 251.93 | 63.14 | 569.76 | 15.13 | 88.08 | -77.69 | 76.13 | 0.9725 | 449.5 | -133.0 | |
| 0.00 | 8.58 | 0.00 | 22.53 | 16.24 | 85.04 | -80.72 | 74.78 | 0.9829 | -87.0 | -161.8 | |
| 5.63 | -2.00 | 15.08 | -2.00 | 14.75 | 85.01 | -80.75 | 76.28 | 0.9833 | -515.9 | 999999 | |
| 0.00 | 3.57 | 0.00 | 8.03 | 12.99 | 87.25 | -78.52 | 78.25 | 0.9763 | -437.0 | -397.7 | |
| 2.50 | -2.00 | 6.41 | -2.00 | 13.60 | 85.61 | -80.16 | 77.50 | 0.9818 | -395.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.65 | 12.71 | 86.24 | -79.52 | 78.46 | 0.9799 | -241.0 | -259.7 | |
| 0.00 | 1.25 | 0.00 | 3.12 | 12.83 | 85.92 | -79.84 | 78.31 | 0.9810 | -353.0 | -338.7 | |
| 0.00 | 2.14 | 0.00 | 5.48 | 12.40 | 85.74 | -80.02 | 78.73 | 0.9817 | 19.0 | 32.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
