SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.61 | 92.49 | 12.50 | 51.10 | -18.16 | 158.83 | -6.39 | 166.28 | 0.4437 | 79.1 | -2.8 | |
|
previous
or next observation for the same group /

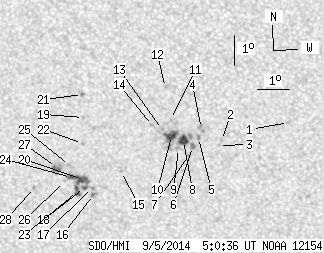

back to the solar disc SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | -17.03 | 163.84 | -1.37 | 176.81 | 0.4135 | 493.0 | 515.3 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.64 | 161.71 | -3.51 | 172.11 | 0.4264 | 682.0 | 561.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.81 | 161.61 | -3.61 | 171.95 | 0.4292 | 465.0 | 460.8 | |
| 0.00 | 4.02 | 0.00 | 2.20 | -17.25 | 161.08 | -4.13 | 170.56 | 0.4217 | 869.0 | 742.0 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -17.55 | 160.98 | -4.24 | 170.46 | 0.4267 | 1037.0 | 751.0 | |
| 0.00 | 3.49 | 0.00 | 1.91 | -17.85 | 160.78 | -4.43 | 170.15 | 0.4319 | 1016.0 | 760.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.15 | 160.64 | -4.57 | 169.98 | 0.4370 | 410.0 | 460.7 | |
| 5.81 | 26.90 | 3.18 | 14.75 | -17.65 | 160.50 | -4.72 | 169.45 | 0.4296 | 995.2 | 610.2 | |
| 0.00 | 2.41 | 0.00 | 1.33 | -17.92 | 160.33 | -4.88 | 169.21 | 0.4343 | 576.0 | 419.9 | |
| 5.90 | -8.00 | 3.23 | -8.00 | -17.49 | 160.12 | -5.09 | 168.55 | 0.4282 | 962.0 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.96 | 160.10 | -5.11 | 168.25 | 0.4200 | 738.0 | 661.6 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.90 | 159.97 | -5.24 | 167.39 | 0.4040 | 709.0 | 513.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.29 | 159.84 | -5.37 | 167.83 | 0.4261 | 667.0 | 501.7 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -17.16 | 159.53 | -5.69 | 167.08 | 0.4251 | 619.0 | 500.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.72 | 158.48 | -6.74 | 165.73 | 0.4527 | 776.0 | 586.7 | |
| 0.00 | 2.95 | 0.00 | 1.65 | -19.51 | 157.54 | -7.68 | 164.34 | 0.4683 | -700.0 | -647.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.27 | 157.52 | -7.70 | 164.15 | 0.4649 | -423.0 | -532.9 | |
| 0.89 | 23.60 | 0.50 | 13.18 | -19.28 | 157.26 | -7.95 | 163.65 | 0.4660 | -911.5 | -795.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.93 | 157.34 | -7.88 | 162.20 | 0.4307 | -529.0 | -473.1 | |
| 5.45 | -18.00 | 3.04 | -18.00 | -19.01 | 157.21 | -8.01 | 163.38 | 0.4623 | -1062.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.17 | 157.34 | -7.88 | 161.63 | 0.4193 | -712.0 | -520.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.80 | 157.27 | -7.95 | 162.68 | 0.4440 | -384.0 | -413.9 | |
| 2.77 | -18.00 | 1.55 | -18.00 | -19.41 | 157.03 | -8.19 | 163.29 | 0.4691 | -846.9 | 999999 | |
| 1.79 | -18.00 | 1.00 | -18.00 | -18.94 | 156.86 | -8.36 | 162.65 | 0.4629 | -1033.8 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -18.54 | 156.81 | -8.40 | 162.29 | 0.4572 | -871.0 | -571.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.08 | 156.62 | -8.59 | 162.29 | 0.4661 | -517.0 | -494.0 | |
| 0.00 | 7.51 | 0.00 | 4.19 | -18.62 | 156.39 | -8.83 | 161.51 | 0.4603 | -839.0 | -826.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.31 | 155.64 | -9.58 | 160.58 | 0.4741 | -603.0 | -433.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
