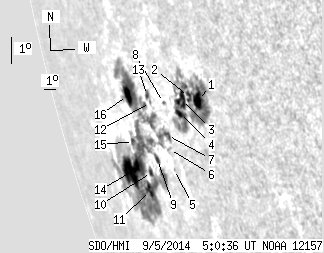

SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.55 | 506.14 | 175.30 | 861.78 | -13.88 | 94.39 | -70.82 | 106.89 | 0.9582 | -102.4 | -97.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.71 | 141.48 | 15.21 | 189.23 | -11.74 | 99.95 | -65.26 | 105.91 | 0.9263 | 812.9 | 271.4 | |
| 3.40 | -1.00 | 4.53 | -1.00 | -11.69 | 99.30 | -65.92 | 105.70 | 0.9303 | 502.3 | 999999 | |
| 10.55 | -1.00 | 14.51 | -1.00 | -11.89 | 98.66 | -66.56 | 105.77 | 0.9344 | 388.8 | 999999 | |
| 4.56 | -1.00 | 6.40 | -1.00 | -12.35 | 98.26 | -66.95 | 106.15 | 0.9373 | 456.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 1.11 | -14.32 | 96.69 | -68.53 | 107.83 | 0.9486 | 290.0 | 304.9 | |
| 0.00 | 2.15 | 0.00 | 3.30 | -13.68 | 96.67 | -68.55 | 107.17 | 0.9479 | 446.0 | 421.0 | |
| 2.95 | 355.00 | 4.48 | 657.55 | -13.22 | 96.78 | -68.44 | 106.72 | 0.9468 | 345.9 | -209.8 | |
| 0.36 | 1.43 | 0.53 | 2.12 | -12.14 | 97.06 | -68.15 | 105.67 | 0.9439 | -125.8 | -123.7 | |
| 2.68 | -7.00 | 4.45 | -7.00 | -14.17 | 95.27 | -69.94 | 107.36 | 0.9556 | 329.7 | 999999 | |
| 2.59 | -7.00 | 4.57 | -7.00 | -14.70 | 94.31 | -70.90 | 107.70 | 0.9607 | 345.9 | 999999 | |
| 7.33 | -7.00 | 13.47 | -7.00 | -15.35 | 93.69 | -71.53 | 108.23 | 0.9641 | 378.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.97 | -12.29 | 95.85 | -69.36 | 105.56 | 0.9505 | 434.0 | 414.8 | |
| 1.97 | 4.11 | 3.11 | 6.50 | -12.09 | 95.70 | -69.51 | 105.32 | 0.9511 | 295.8 | 174.2 | |
| 41.74 | -7.00 | 83.11 | -7.00 | -14.88 | 92.32 | -72.89 | 107.47 | 0.9694 | -499.8 | 999999 | |
| 2.50 | -7.00 | 4.66 | -7.00 | -13.85 | 93.18 | -72.04 | 106.60 | 0.9649 | -636.2 | 999999 | |
| 9.21 | -7.00 | 16.27 | -7.00 | -12.33 | 93.67 | -71.55 | 105.15 | 0.9613 | -533.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
