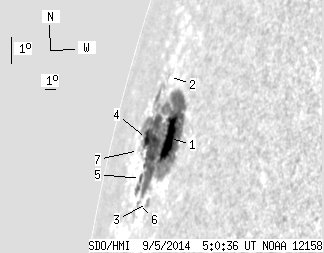

SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.21 | 280.36 | 87.46 | 616.10 | 14.92 | 87.32 | -77.89 | 76.32 | 0.9731 | 205.8 | -154.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.98 | 272.24 | 66.68 | 597.30 | 15.13 | 88.09 | -77.12 | 76.16 | 0.9703 | 444.7 | -153.2 | |
| 0.00 | 0.80 | 0.00 | 1.90 | 16.80 | 85.75 | -79.46 | 74.29 | 0.9786 | 201.0 | 181.8 | |
| 0.00 | 3.93 | 0.00 | 8.46 | 13.00 | 87.29 | -77.93 | 78.29 | 0.9741 | -403.0 | -376.2 | |
| 6.17 | -1.00 | 15.74 | -1.00 | 14.73 | 84.85 | -80.36 | 76.33 | 0.9821 | -545.3 | 999999 | |
| 2.06 | -1.00 | 5.04 | -1.00 | 13.55 | 85.46 | -79.75 | 77.58 | 0.9805 | -410.8 | 999999 | |
| 0.00 | 2.41 | 0.00 | 5.71 | 12.82 | 86.06 | -79.16 | 78.38 | 0.9786 | -383.0 | -344.9 | |
| 0.00 | 0.98 | 0.00 | 2.73 | 14.25 | 84.02 | -81.19 | 76.75 | 0.9848 | 404.0 | 362.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
