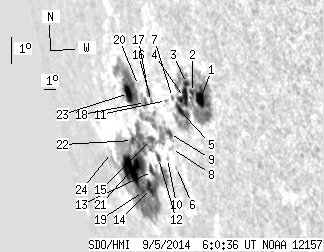

SDO HMI 2014-09-05 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.13 | 531.08 | 182.64 | 879.50 | -13.78 | 94.48 | -70.18 | 106.92 | 0.9551 | -81.6 | -99.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.47 | 148.19 | 12.05 | 193.65 | -11.73 | 100.00 | -64.67 | 106.04 | 0.9225 | 770.8 | 262.0 | |
| 1.70 | -1.00 | 2.21 | -1.00 | -11.60 | 99.47 | -65.20 | 105.78 | 0.9257 | 588.9 | 999999 | |
| 2.68 | -1.00 | 3.52 | -1.00 | -11.36 | 99.13 | -65.54 | 105.44 | 0.9274 | 492.8 | 999999 | |
| 11.80 | -1.00 | 15.80 | -1.00 | -11.84 | 98.75 | -65.91 | 105.87 | 0.9305 | 346.2 | 999999 | |
| 5.36 | -1.00 | 7.37 | -1.00 | -12.32 | 98.21 | -66.46 | 106.24 | 0.9344 | 318.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.34 | -14.31 | 96.74 | -67.92 | 107.96 | 0.9454 | 313.0 | 290.7 | |
| 0.00 | 1.43 | 0.00 | 2.00 | -11.96 | 97.76 | -66.91 | 105.76 | 0.9366 | -50.0 | -98.0 | |
| 0.00 | 2.06 | 0.00 | 3.07 | -13.71 | 96.70 | -67.97 | 107.33 | 0.9448 | 455.0 | 404.2 | |
| 2.86 | 305.32 | 4.23 | 556.85 | -13.21 | 96.83 | -67.84 | 106.85 | 0.9435 | 363.1 | -202.9 | |
| 0.00 | 1.43 | 0.00 | 2.20 | -14.09 | 96.11 | -68.55 | 107.60 | 0.9484 | 349.0 | 272.8 | |
| 0.00 | 1.16 | 0.00 | 1.67 | -12.12 | 97.19 | -67.48 | 105.80 | 0.9401 | 200.0 | 65.4 | |
| 2.06 | -9.00 | 3.31 | -9.00 | -14.20 | 95.25 | -69.42 | 107.51 | 0.9530 | 350.2 | 999999 | |
| 4.02 | -9.00 | 6.87 | -9.00 | -14.73 | 94.32 | -70.35 | 107.84 | 0.9581 | 294.7 | 999999 | |
| 8.67 | -9.00 | 15.43 | -9.00 | -15.34 | 93.74 | -70.92 | 108.34 | 0.9614 | 322.5 | 999999 | |
| 3.31 | -9.00 | 5.37 | -9.00 | -13.62 | 95.01 | -69.66 | 106.86 | 0.9535 | -493.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.33 | -12.32 | 95.82 | -68.85 | 105.70 | 0.9479 | 451.0 | 418.7 | |
| 1.88 | 3.75 | 2.89 | 5.78 | -12.05 | 95.71 | -68.96 | 105.40 | 0.9481 | 241.3 | 86.2 | |
| 2.23 | 7.33 | 3.54 | 11.67 | -12.42 | 95.23 | -69.44 | 105.68 | 0.9511 | -252.3 | -341.1 | |
| 1.61 | -9.00 | 3.03 | -9.00 | -15.56 | 92.76 | -71.90 | 108.35 | 0.9660 | -515.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.43 | -11.93 | 94.89 | -69.78 | 105.10 | 0.9523 | -264.0 | -256.4 | |
| 38.97 | -9.00 | 75.30 | -9.00 | -14.89 | 92.19 | -72.47 | 107.56 | 0.9677 | -448.6 | 999999 | |
| 2.50 | -9.00 | 4.54 | -9.00 | -13.90 | 93.00 | -71.67 | 106.72 | 0.9633 | -578.7 | 999999 | |
| 10.01 | 56.84 | 17.18 | 96.91 | -12.32 | 93.71 | -70.95 | 105.26 | 0.9585 | -367.0 | -256.0 | |
| 0.00 | 0.27 | 0.00 | 0.60 | -14.65 | 90.06 | -74.60 | 106.89 | 0.9758 | 266.0 | 264.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
