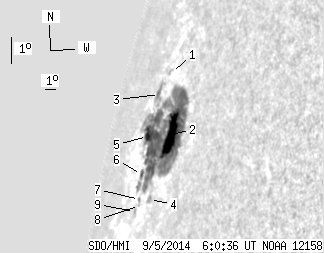

SDO HMI 2014-09-05 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.46 | 287.99 | 75.57 | 606.90 | 14.98 | 87.33 | -77.34 | 76.30 | 0.9710 | 154.3 | -154.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 5.45 | 16.82 | 85.86 | -78.81 | 74.32 | 0.9763 | 239.0 | 114.6 | |
| 32.00 | 266.17 | 62.46 | 556.43 | 15.12 | 87.98 | -76.69 | 76.20 | 0.9685 | 295.5 | -147.1 | |
| 0.00 | 11.71 | 0.00 | 28.16 | 16.02 | 85.04 | -79.63 | 75.07 | 0.9794 | -310.0 | -285.4 | |
| 0.00 | 3.58 | 0.00 | 7.40 | 13.01 | 87.32 | -77.34 | 78.33 | 0.9718 | -443.0 | -407.5 | |
| 3.49 | -2.00 | 8.49 | -2.00 | 14.69 | 84.93 | -79.73 | 76.43 | 0.9801 | -424.6 | 999999 | |
| 1.97 | -2.00 | 4.62 | -2.00 | 13.56 | 85.44 | -79.23 | 77.62 | 0.9787 | -275.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 3.26 | 12.84 | 85.98 | -78.69 | 78.39 | 0.9770 | -343.0 | -294.2 | |
| 0.00 | 0.54 | 0.00 | 1.20 | 12.68 | 86.16 | -78.50 | 78.57 | 0.9764 | -298.0 | -253.8 | |
| 0.00 | 2.15 | 0.00 | 5.00 | 12.43 | 85.63 | -79.03 | 78.79 | 0.9783 | 163.0 | 110.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
