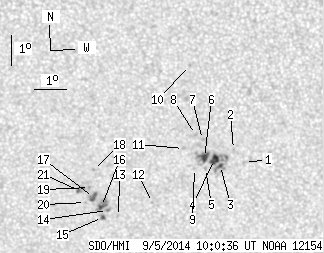

SDO HMI 2014-09-05 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.89 | 71.19 | 9.28 | 39.13 | -18.16 | 159.04 | -3.43 | 172.59 | 0.4349 | 144.8 | 46.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.07 | -17.72 | 161.64 | -0.83 | 178.12 | 0.4238 | 767.0 | 497.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.29 | 161.29 | -1.18 | 177.29 | 0.4172 | 954.0 | 778.6 | |
| 1.43 | 20.55 | 0.78 | 11.23 | -17.82 | 160.88 | -1.60 | 176.41 | 0.4260 | 863.1 | 742.7 | |
| 5.27 | -3.00 | 2.88 | -3.00 | -17.62 | 160.69 | -1.79 | 175.96 | 0.4231 | 1009.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.92 | 160.40 | -2.08 | 175.36 | 0.4282 | 636.0 | 502.2 | |
| 4.29 | 11.71 | 2.34 | 6.39 | -17.56 | 160.37 | -2.10 | 175.23 | 0.4224 | 1030.6 | 637.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -16.96 | 160.32 | -2.16 | 174.97 | 0.4130 | 848.0 | 804.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -16.79 | 160.10 | -2.38 | 174.43 | 0.4107 | 677.0 | 572.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.93 | 160.05 | -2.43 | 174.59 | 0.4287 | 466.0 | 389.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.53 | 159.94 | -2.54 | 173.41 | 0.3747 | 743.0 | 549.4 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.26 | 159.71 | -2.76 | 173.66 | 0.4187 | 744.0 | 567.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.08 | 158.69 | -3.79 | 171.97 | 0.4491 | 653.0 | 519.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.56 | 157.58 | -4.89 | 169.88 | 0.4593 | -680.0 | -610.0 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -19.36 | 157.23 | -5.24 | 169.09 | 0.4572 | -930.0 | -764.4 | |
| 0.89 | 3.04 | 0.50 | 1.69 | -19.60 | 157.06 | -5.41 | 168.85 | 0.4614 | -775.1 | -688.6 | |
| 1.97 | 9.29 | 1.09 | 5.16 | -19.23 | 157.04 | -5.43 | 168.64 | 0.4558 | -994.5 | -862.0 | |
| 2.41 | 5.45 | 1.34 | 3.02 | -18.93 | 156.80 | -5.68 | 168.00 | 0.4519 | -1012.4 | -826.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.99 | 156.83 | -5.64 | 167.60 | 0.4374 | -827.0 | -675.0 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.59 | 156.68 | -5.79 | 167.59 | 0.4472 | -956.0 | -734.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.10 | 156.53 | -5.94 | 167.55 | 0.4554 | -681.0 | -531.1 | |
| 0.63 | 5.18 | 0.35 | 2.87 | -18.70 | 156.32 | -6.15 | 166.91 | 0.4500 | -845.1 | -785.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
