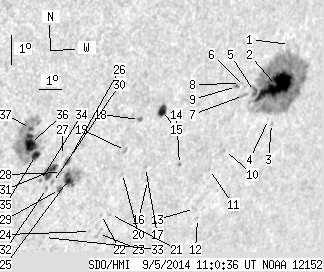

SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.71 | 405.53 | 68.06 | 314.52 | -14.68 | 207.31 | 45.38 | 243.72 | 0.7681 | 53.4 | 43.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.44 | -12.83 | 210.83 | 48.91 | 247.74 | 0.7963 | 358.0 | 329.7 | |
| 38.60 | 235.52 | 31.63 | 193.34 | -14.11 | 210.57 | 48.64 | 246.10 | 0.7984 | 959.8 | 239.5 | |
| 0.00 | 1.43 | 0.00 | 1.19 | -15.35 | 210.70 | 48.78 | 244.72 | 0.8044 | 227.0 | 261.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -15.20 | 210.51 | 48.59 | 244.81 | 0.8020 | 452.0 | 385.7 | |
| 2.86 | -2.00 | 2.30 | -2.00 | -14.21 | 209.56 | 47.64 | 245.55 | 0.7891 | 859.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -13.99 | 209.04 | 47.12 | 245.57 | 0.7832 | 710.0 | 573.2 | |
| 0.00 | 3.31 | 0.00 | 2.63 | -14.29 | 209.08 | 47.15 | 245.24 | 0.7847 | 550.0 | 559.3 | |
| 0.00 | 1.97 | 0.00 | 1.55 | -13.88 | 208.83 | 46.90 | 245.61 | 0.7806 | 473.0 | 565.2 | |
| 0.54 | 1.61 | 0.42 | 1.27 | -13.96 | 208.67 | 46.74 | 245.44 | 0.7793 | 762.5 | 682.8 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -16.03 | 208.71 | 46.78 | 243.00 | 0.7883 | 585.0 | 490.7 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -16.60 | 208.19 | 46.27 | 242.09 | 0.7859 | 561.0 | 456.7 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -18.21 | 208.17 | 46.25 | 240.21 | 0.7928 | 330.0 | 312.0 | |
| 0.00 | 2.50 | 0.00 | 2.01 | -17.86 | 207.91 | 45.99 | 240.49 | 0.7888 | 584.0 | 399.8 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -16.30 | 206.75 | 44.82 | 241.71 | 0.7706 | 720.0 | 609.1 | |
| 6.34 | 9.20 | 4.73 | 6.86 | -14.43 | 205.50 | 43.57 | 243.31 | 0.7494 | -563.7 | -320.3 | |
| 0.00 | 1.61 | 0.00 | 1.22 | -16.70 | 205.45 | 43.52 | 240.54 | 0.7598 | -616.0 | -410.7 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -16.26 | 205.24 | 43.31 | 240.96 | 0.7555 | -250.0 | -230.6 | |
| 0.71 | 2.14 | 0.53 | 1.58 | -14.64 | 204.56 | 42.64 | 242.56 | 0.7407 | 789.9 | 647.9 | |
| 0.00 | 2.14 | 0.00 | 1.58 | -15.61 | 204.21 | 42.28 | 241.17 | 0.7419 | -488.0 | -388.7 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -16.37 | 204.28 | 42.35 | 240.29 | 0.7465 | -497.0 | -379.8 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -17.70 | 204.13 | 42.21 | 238.61 | 0.7520 | -499.0 | -439.6 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -17.67 | 203.74 | 41.81 | 238.42 | 0.7479 | -590.0 | -475.9 | |
| 0.00 | 4.02 | 0.00 | 3.01 | -18.30 | 203.79 | 41.87 | 237.71 | 0.7519 | -298.0 | -312.8 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -18.20 | 203.42 | 41.50 | 237.60 | 0.7478 | -668.0 | -552.0 | |
| 7.95 | 20.10 | 5.69 | 14.40 | -16.36 | 202.00 | 40.08 | 238.95 | 0.7234 | -741.4 | -188.6 | |
| 2.06 | 4.74 | 1.46 | 3.36 | -15.76 | 201.82 | 39.89 | 239.58 | 0.7181 | -567.7 | -421.3 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -15.54 | 201.56 | 39.64 | 239.70 | 0.7142 | -329.0 | -429.7 | |
| 0.00 | 2.14 | 0.00 | 1.52 | -16.11 | 201.65 | 39.73 | 239.05 | 0.7183 | -765.0 | -578.6 | |
| 1.61 | 3.66 | 1.15 | 2.61 | -16.67 | 201.71 | 39.78 | 238.40 | 0.7220 | -655.9 | -576.2 | |
| 0.00 | 1.61 | 0.00 | 1.14 | -16.41 | 201.36 | 39.43 | 238.49 | 0.7169 | -731.0 | -541.4 | |
| 8.85 | 12.51 | 6.23 | 8.81 | -16.03 | 201.14 | 39.22 | 238.83 | 0.7126 | -932.6 | -681.3 | |
| 0.00 | 1.52 | 0.00 | 1.07 | -16.59 | 201.16 | 39.23 | 238.14 | 0.7159 | -680.0 | -582.5 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -18.23 | 201.50 | 39.57 | 236.37 | 0.7290 | -621.0 | -617.1 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -16.30 | 200.84 | 38.92 | 238.30 | 0.7110 | -708.0 | -651.4 | |
| 4.82 | 81.75 | 3.35 | 56.15 | -15.45 | 200.45 | 38.52 | 239.11 | 0.7018 | -648.6 | -530.1 | |
| 14.21 | -35.00 | 9.77 | -35.00 | -15.04 | 200.16 | 38.23 | 239.44 | 0.6963 | -967.3 | 999999 | |
| 1.16 | -35.00 | 0.80 | -35.00 | -14.54 | 200.05 | 38.13 | 240.01 | 0.6923 | -907.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
