SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.01 | 0.00 | 7.95 | 11.90 | 180.51 | 18.59 | 290.22 | 0.3377 | -75.7 | -136.0 | |
|
previous
or next observation for the same group /

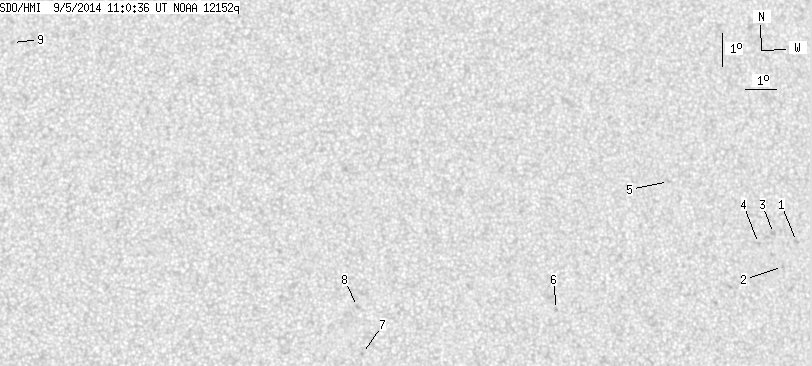

back to the solar disc SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.22 | 11.58 | 187.20 | 25.28 | 281.84 | 0.4292 | -696.0 | -535.1 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 10.85 | 186.66 | 24.73 | 280.28 | 0.4193 | -906.0 | -696.4 | |
| 0.00 | 2.68 | 0.00 | 1.46 | 11.87 | 186.45 | 24.52 | 282.76 | 0.4182 | -745.0 | -579.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 11.59 | 185.91 | 23.99 | 282.28 | 0.4093 | -840.0 | -714.1 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 13.61 | 183.08 | 21.16 | 288.81 | 0.3721 | -761.0 | -578.9 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 9.89 | 179.14 | 17.21 | 280.11 | 0.2975 | 746.0 | 617.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 8.75 | 172.96 | 11.03 | 278.69 | 0.1922 | 828.0 | 615.0 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 10.18 | 172.85 | 10.93 | 286.06 | 0.1950 | 862.0 | 597.7 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 18.37 | 162.21 | 0.29 | 358.58 | 0.1941 | 831.0 | 652.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
