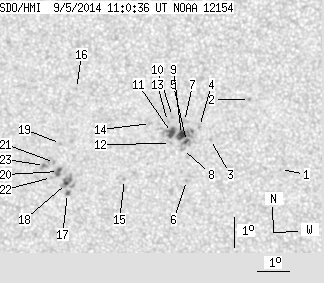

SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.10 | 72.36 | 8.29 | 39.73 | -18.13 | 159.24 | -2.69 | 174.20 | 0.4333 | 300.3 | 80.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.81 | 163.89 | 1.97 | 184.23 | 0.4419 | 683.0 | 567.0 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.47 | 162.89 | 0.97 | 182.31 | 0.4039 | 935.0 | 708.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.79 | 161.66 | -0.27 | 179.40 | 0.4248 | 673.0 | 579.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.36 | 161.31 | -0.61 | 178.59 | 0.4180 | 814.0 | 742.2 | |
| 1.43 | 17.78 | 0.78 | 9.72 | -17.86 | 160.90 | -1.03 | 177.69 | 0.4262 | 859.0 | 775.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.17 | 160.89 | -1.04 | 177.80 | 0.4468 | 742.0 | 600.6 | |
| 0.00 | 3.66 | 0.00 | 1.99 | -17.20 | 160.84 | -1.09 | 177.49 | 0.4156 | 708.0 | 689.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -18.13 | 160.77 | -1.16 | 177.43 | 0.4305 | 567.0 | 539.3 | |
| 5.36 | -5.00 | 2.93 | -5.00 | -17.63 | 160.74 | -1.19 | 177.31 | 0.4226 | 1013.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -17.03 | 160.46 | -1.47 | 176.59 | 0.4133 | 884.0 | 772.2 | |
| 4.20 | 10.28 | 2.29 | 5.61 | -17.56 | 160.42 | -1.50 | 176.59 | 0.4218 | 1020.3 | 672.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -17.93 | 160.39 | -1.54 | 176.56 | 0.4276 | 578.0 | 408.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.20 | 160.30 | -1.63 | 176.25 | 0.4161 | 848.0 | 761.2 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.26 | 159.76 | -2.16 | 175.03 | 0.4178 | 784.0 | 566.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -19.15 | 158.90 | -3.02 | 173.60 | 0.4487 | 682.0 | 595.0 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.12 | 157.44 | -4.48 | 169.26 | 0.4047 | -771.0 | -576.3 | |
| 0.89 | 2.41 | 0.50 | 1.34 | -19.63 | 157.06 | -4.87 | 169.96 | 0.4603 | -763.0 | -668.2 | |
| 1.16 | 11.35 | 0.65 | 6.30 | -19.30 | 157.04 | -4.89 | 169.78 | 0.4552 | -1003.5 | -830.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.95 | 156.89 | -5.04 | 168.88 | 0.4350 | -712.0 | -591.0 | |
| 2.06 | 4.82 | 1.14 | 2.67 | -18.89 | 156.79 | -5.13 | 169.11 | 0.4497 | -1017.9 | -834.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.59 | 156.67 | -5.25 | 168.72 | 0.4455 | -949.0 | -786.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.10 | 156.56 | -5.36 | 168.72 | 0.4536 | -706.0 | -561.0 | |
| 0.00 | 4.29 | 0.00 | 2.37 | -18.70 | 156.35 | -5.57 | 168.10 | 0.4481 | -883.0 | -780.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
