SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.95 | 578.45 | 173.55 | 836.57 | -13.68 | 94.61 | -67.31 | 107.46 | 0.9398 | -47.4 | -64.4 | |
|
previous
or next observation for the same group /

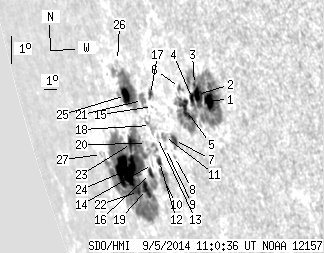

back to the solar disc SDO HMI 2014-09-05 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.36 | 178.34 | 11.86 | 209.12 | -11.71 | 100.06 | -61.86 | 106.73 | 0.9034 | 731.6 | 220.8 | |
| 10.28 | -1.00 | 12.03 | -1.00 | -11.60 | 99.37 | -62.55 | 106.43 | 0.9081 | 486.2 | 999999 | |
| 0.63 | -1.00 | 0.73 | -1.00 | -11.30 | 99.29 | -62.63 | 106.08 | 0.9081 | 445.9 | 999999 | |
| 3.04 | -1.00 | 3.62 | -1.00 | -11.77 | 98.96 | -62.96 | 106.51 | 0.9112 | 188.7 | 999999 | |
| 11.44 | -1.00 | 14.00 | -1.00 | -12.22 | 98.35 | -63.57 | 106.83 | 0.9161 | 271.1 | 999999 | |
| 0.89 | 3.57 | 1.10 | 4.37 | -11.52 | 98.16 | -63.76 | 106.04 | 0.9162 | 372.0 | 313.6 | |
| 4.20 | 8.22 | 5.49 | 10.76 | -13.34 | 96.95 | -64.97 | 107.66 | 0.9269 | 477.2 | 306.0 | |
| 0.00 | 1.25 | 0.00 | 1.66 | -13.88 | 96.66 | -65.26 | 108.16 | 0.9295 | 369.0 | 325.0 | |
| 0.00 | 0.80 | 0.00 | 1.09 | -13.70 | 96.08 | -65.85 | 107.82 | 0.9327 | -360.0 | -239.1 | |
| 0.00 | 15.64 | 0.00 | 22.17 | -14.81 | 95.35 | -66.57 | 108.79 | 0.9386 | 549.0 | 344.8 | |
| 0.00 | 4.02 | 0.00 | 5.42 | -13.30 | 96.22 | -65.71 | 107.44 | 0.9313 | -520.0 | -439.1 | |
| 2.77 | 285.29 | 3.91 | 462.87 | -14.20 | 95.32 | -66.60 | 108.16 | 0.9379 | 376.9 | -182.6 | |
| 0.00 | 0.98 | 0.00 | 1.36 | -13.40 | 95.62 | -66.30 | 107.40 | 0.9350 | -527.0 | -489.7 | |
| 0.00 | 0.27 | 0.00 | 0.39 | -14.38 | 94.65 | -67.28 | 108.18 | 0.9419 | 140.0 | 157.3 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -12.40 | 95.76 | -66.16 | 106.39 | 0.9327 | 360.0 | 367.7 | |
| 3.13 | -12.00 | 4.64 | -12.00 | -14.71 | 94.27 | -67.65 | 108.43 | 0.9444 | 297.3 | 999999 | |
| 2.06 | 4.11 | 2.78 | 5.55 | -12.02 | 95.80 | -66.12 | 105.99 | 0.9320 | 322.7 | 230.3 | |
| 0.00 | 8.22 | 0.00 | 11.51 | -13.06 | 95.26 | -66.67 | 106.96 | 0.9366 | -343.0 | -350.8 | |
| 8.76 | -12.00 | 13.59 | -12.00 | -15.31 | 93.53 | -68.40 | 108.88 | 0.9491 | 288.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.20 | -13.72 | 94.56 | -67.36 | 107.48 | 0.9415 | -404.0 | -388.6 | |
| 0.00 | 8.22 | 0.00 | 11.50 | -12.30 | 95.03 | -66.89 | 106.11 | 0.9369 | -214.0 | -154.4 | |
| 1.97 | -12.00 | 3.18 | -12.00 | -15.48 | 92.70 | -69.22 | 108.86 | 0.9535 | -415.5 | 999999 | |
| 8.49 | -12.00 | 13.15 | -12.00 | -13.88 | 93.19 | -68.73 | 107.33 | 0.9491 | -672.9 | 999999 | |
| 40.92 | -12.00 | 68.52 | -12.00 | -14.89 | 91.95 | -69.97 | 108.09 | 0.9565 | -328.4 | 999999 | |
| 10.01 | 55.31 | 14.95 | 81.93 | -12.31 | 93.63 | -68.30 | 105.80 | 0.9449 | -367.4 | -259.7 | |
| 0.00 | 0.63 | 0.00 | 0.93 | -11.21 | 93.54 | -68.39 | 104.65 | 0.9440 | -141.0 | -132.1 | |
| 0.00 | 1.79 | 0.00 | 3.38 | -14.64 | 89.80 | -72.12 | 107.38 | 0.9660 | 434.0 | 375.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
