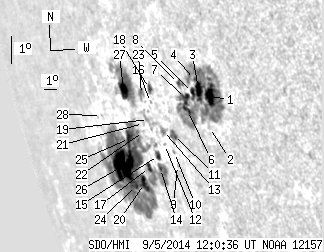

SDO HMI 2014-09-05 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.20 | 605.89 | 166.85 | 855.83 | -13.73 | 94.53 | -66.85 | 107.62 | 0.9372 | -41.3 | -61.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.61 | 185.73 | 13.03 | 213.42 | -11.75 | 100.10 | -61.28 | 106.92 | 0.8993 | 716.6 | 213.4 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -12.78 | 99.68 | -61.70 | 107.92 | 0.9042 | 131.0 | 137.3 | |
| 8.22 | -1.00 | 9.42 | -1.00 | -11.60 | 99.43 | -61.94 | 106.59 | 0.9038 | 492.9 | 999999 | |
| 0.63 | -1.00 | 0.72 | -1.00 | -11.31 | 99.28 | -62.09 | 106.23 | 0.9043 | 381.3 | 999999 | |
| 3.04 | -1.00 | 3.54 | -1.00 | -11.75 | 98.97 | -62.40 | 106.63 | 0.9073 | 221.8 | 999999 | |
| 4.11 | -1.00 | 4.93 | -1.00 | -12.39 | 98.36 | -63.01 | 107.15 | 0.9126 | 341.2 | 999999 | |
| 6.34 | -1.00 | 7.58 | -1.00 | -12.01 | 98.39 | -62.99 | 106.75 | 0.9118 | 236.3 | 999999 | |
| 1.43 | 4.11 | 1.72 | 4.93 | -11.57 | 98.09 | -63.28 | 106.21 | 0.9130 | 351.6 | 311.4 | |
| 0.00 | 0.63 | 0.00 | 0.82 | -14.34 | 96.69 | -64.68 | 108.78 | 0.9267 | 271.0 | 280.0 | |
| 0.00 | 1.34 | 0.00 | 1.74 | -13.92 | 96.70 | -64.68 | 108.34 | 0.9260 | 370.0 | 355.4 | |
| 3.57 | 7.24 | 4.57 | 9.26 | -13.35 | 96.92 | -64.46 | 107.80 | 0.9237 | 493.5 | 339.4 | |
| 0.00 | 0.89 | 0.00 | 1.19 | -13.74 | 96.05 | -65.33 | 107.99 | 0.9297 | -190.0 | -143.9 | |
| 0.00 | 5.36 | 0.00 | 7.05 | -13.28 | 96.22 | -65.16 | 107.55 | 0.9279 | -503.0 | -439.6 | |
| 1.34 | 317.14 | 1.86 | 498.93 | -14.60 | 95.25 | -66.12 | 108.69 | 0.9357 | 529.5 | -143.4 | |
| 3.22 | 4.20 | 4.43 | 5.79 | -14.17 | 95.35 | -66.03 | 108.27 | 0.9345 | 356.6 | 253.3 | |
| 0.00 | 0.98 | 0.00 | 1.31 | -12.45 | 95.66 | -65.72 | 106.55 | 0.9301 | 344.0 | 313.0 | |
| 3.48 | -14.00 | 5.04 | -14.00 | -14.68 | 94.33 | -67.05 | 108.55 | 0.9410 | 280.6 | 999999 | |
| 2.23 | 4.20 | 2.95 | 5.54 | -11.99 | 95.81 | -65.57 | 106.10 | 0.9285 | 290.8 | 131.5 | |
| 0.00 | 10.99 | 0.00 | 15.04 | -13.05 | 95.20 | -66.18 | 107.06 | 0.9337 | -325.0 | -338.1 | |
| 8.75 | -14.00 | 13.25 | -14.00 | -15.29 | 93.51 | -67.86 | 108.98 | 0.9463 | 258.6 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.13 | -13.23 | 94.70 | -66.67 | 107.13 | 0.9369 | -322.0 | -298.6 | |
| 0.00 | 0.27 | 0.00 | 0.38 | -13.50 | 94.55 | -66.82 | 107.38 | 0.9382 | -300.0 | -302.7 | |
| 0.00 | 5.99 | 0.00 | 8.18 | -12.27 | 95.06 | -66.32 | 106.21 | 0.9335 | -115.0 | -114.4 | |
| 1.97 | -14.00 | 3.10 | -14.00 | -15.45 | 92.72 | -68.66 | 108.96 | 0.9506 | -430.7 | 999999 | |
| 5.72 | -14.00 | 8.69 | -14.00 | -13.89 | 93.17 | -68.21 | 107.46 | 0.9464 | -629.6 | 999999 | |
| 41.09 | -14.00 | 66.80 | -14.00 | -14.90 | 91.96 | -69.42 | 108.22 | 0.9538 | -351.8 | 999999 | |
| 10.45 | 54.23 | 15.22 | 78.46 | -12.32 | 93.59 | -67.79 | 105.93 | 0.9421 | -381.6 | -261.6 | |
| 0.00 | 0.80 | 0.00 | 1.35 | -13.43 | 90.97 | -70.40 | 106.50 | 0.9570 | -227.0 | -189.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
