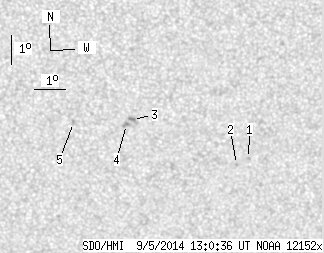

SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.88 | 0.00 | 6.65 | -19.78 | 167.80 | 6.97 | 194.04 | 0.4698 | 781.0 | 662.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.86 | 171.38 | 10.56 | 200.06 | 0.5011 | 650.0 | 577.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.06 | 171.00 | 10.18 | 199.25 | 0.5020 | 791.0 | 704.2 | |
| 0.00 | 4.02 | 0.00 | 2.24 | -19.45 | 167.53 | 6.70 | 193.79 | 0.4633 | 911.0 | 735.6 | |
| 0.00 | 3.84 | 0.00 | 2.15 | -19.61 | 167.34 | 6.51 | 193.34 | 0.4652 | 844.0 | 628.4 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -19.52 | 165.63 | 4.80 | 189.95 | 0.4584 | 709.0 | 597.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
