SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.62 | 227.05 | 49.59 | 219.37 | -19.62 | 107.27 | -53.55 | 118.03 | 0.8604 | 583.6 | 204.7 | |
|
previous
or next observation for the same group /

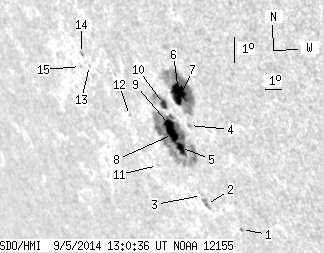

back to the solar disc SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 1.03 | -23.11 | 109.09 | -51.74 | 122.56 | 0.8588 | -229.0 | -285.3 | |
| 0.54 | 5.27 | 0.53 | 5.21 | -22.42 | 107.58 | -53.25 | 121.16 | 0.8676 | 402.8 | 368.1 | |
| 0.00 | 0.63 | 0.00 | 0.62 | -22.12 | 107.47 | -53.36 | 120.80 | 0.8674 | 643.0 | 518.0 | |
| 0.00 | 1.97 | 0.00 | 1.86 | -19.70 | 108.06 | -52.76 | 118.45 | 0.8545 | 563.0 | 503.8 | |
| 6.88 | 119.42 | 6.73 | 117.11 | -20.53 | 107.17 | -53.66 | 118.98 | 0.8643 | 574.6 | 124.2 | |
| 16.52 | 78.60 | 15.49 | 73.56 | -18.58 | 108.00 | -52.83 | 117.20 | 0.8512 | 818.8 | 381.0 | |
| 6.07 | -6.00 | 5.74 | -6.00 | -18.86 | 107.87 | -52.95 | 117.45 | 0.8532 | 535.6 | 999999 | |
| 10.00 | -5.00 | 9.80 | -5.00 | -20.12 | 106.94 | -53.89 | 118.44 | 0.8647 | 634.5 | 999999 | |
| 6.88 | -5.00 | 6.72 | -5.00 | -19.79 | 106.94 | -53.88 | 118.08 | 0.8636 | 616.1 | 999999 | |
| 4.73 | 14.83 | 4.58 | 14.41 | -19.08 | 106.96 | -53.87 | 117.33 | 0.8612 | 572.1 | 82.8 | |
| 0.00 | 1.16 | 0.00 | 1.20 | -21.32 | 105.45 | -55.38 | 119.13 | 0.8796 | 455.0 | 348.8 | |
| 0.00 | 0.89 | 0.00 | 0.92 | -19.72 | 104.72 | -56.11 | 117.16 | 0.8801 | 554.0 | 473.4 | |
| 0.00 | 0.89 | 0.00 | 0.95 | -18.24 | 103.15 | -57.67 | 115.01 | 0.8875 | -342.0 | -291.5 | |
| 0.00 | 1.34 | 0.00 | 1.43 | -17.88 | 102.86 | -57.96 | 114.52 | 0.8887 | -555.0 | -476.7 | |
| 0.00 | 0.98 | 0.00 | 1.07 | -18.34 | 102.56 | -58.27 | 114.91 | 0.8920 | -299.0 | -226.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
