SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.83 | 614.89 | 169.80 | 844.92 | -13.68 | 94.65 | -66.18 | 107.73 | 0.9332 | -28.9 | -57.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

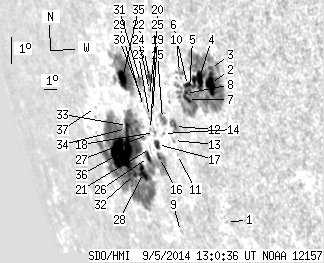

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 1.17 | -16.25 | 99.10 | -61.72 | 111.60 | 0.9111 | -429.0 | -356.2 | |
| 14.92 | 192.93 | 16.40 | 217.31 | -11.68 | 100.16 | -60.67 | 107.02 | 0.8947 | 722.6 | 200.7 | |
| 0.98 | -2.00 | 1.07 | -2.00 | -11.19 | 100.34 | -60.49 | 106.53 | 0.8924 | 617.9 | 999999 | |
| 15.09 | -2.00 | 17.04 | -2.00 | -11.68 | 99.39 | -61.44 | 106.80 | 0.9003 | 423.0 | 999999 | |
| 1.88 | -2.00 | 2.19 | -2.00 | -12.05 | 98.65 | -62.18 | 107.00 | 0.9062 | 385.2 | 999999 | |
| 3.13 | -2.00 | 3.63 | -2.00 | -11.93 | 98.56 | -62.26 | 106.85 | 0.9066 | 277.2 | 999999 | |
| 3.22 | -2.00 | 3.78 | -2.00 | -12.39 | 98.37 | -62.46 | 107.30 | 0.9088 | 369.9 | 999999 | |
| 1.61 | -2.00 | 1.89 | -2.00 | -12.21 | 98.31 | -62.52 | 107.09 | 0.9089 | 191.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.87 | -16.98 | 95.36 | -65.46 | 111.32 | 0.9355 | -219.0 | -230.0 | |
| 0.00 | 4.82 | 0.00 | 5.67 | -11.56 | 98.17 | -62.66 | 106.36 | 0.9087 | 435.0 | 286.2 | |
| 0.00 | 0.63 | 0.00 | 0.80 | -14.33 | 96.74 | -64.09 | 108.93 | 0.9229 | 278.0 | 250.7 | |
| 0.00 | 7.95 | 0.00 | 9.95 | -13.41 | 97.00 | -63.83 | 108.02 | 0.9197 | 626.0 | 447.0 | |
| 0.00 | 1.61 | 0.00 | 2.04 | -13.89 | 96.68 | -64.15 | 108.45 | 0.9226 | 440.0 | 364.6 | |
| 0.00 | 1.07 | 0.00 | 1.39 | -13.75 | 96.03 | -64.80 | 108.13 | 0.9264 | -154.0 | -111.2 | |
| 0.00 | 7.15 | 0.00 | 9.18 | -13.25 | 96.21 | -64.61 | 107.65 | 0.9245 | -526.0 | -432.7 | |
| 0.98 | 313.06 | 1.33 | 480.05 | -14.60 | 95.25 | -65.58 | 108.83 | 0.9325 | 486.5 | -148.7 | |
| 3.22 | 4.38 | 4.33 | 5.89 | -14.18 | 95.34 | -65.48 | 108.41 | 0.9313 | 393.8 | 290.0 | |
| 0.00 | 1.61 | 0.00 | 2.15 | -13.80 | 95.33 | -65.50 | 108.01 | 0.9308 | 31.0 | 48.5 | |
| 0.00 | 0.63 | 0.00 | 0.83 | -13.14 | 95.53 | -65.30 | 107.36 | 0.9286 | -535.0 | -530.7 | |
| 0.00 | 0.71 | 0.00 | 0.97 | -13.73 | 95.06 | -65.77 | 107.87 | 0.9323 | -435.0 | -384.8 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -14.38 | 94.69 | -66.14 | 108.46 | 0.9355 | 213.0 | 205.7 | |
| 3.30 | 5.09 | 4.26 | 6.56 | -11.99 | 95.87 | -64.96 | 106.24 | 0.9247 | 300.8 | 185.2 | |
| 0.00 | 2.23 | 0.00 | 3.00 | -13.30 | 95.22 | -65.61 | 107.46 | 0.9307 | -513.0 | -436.4 | |
| 0.00 | 1.34 | 0.00 | 1.75 | -12.42 | 95.66 | -65.17 | 106.65 | 0.9267 | 397.0 | 308.8 | |
| 0.00 | 1.25 | 0.00 | 1.64 | -12.59 | 95.58 | -65.25 | 106.80 | 0.9274 | 170.0 | 122.6 | |
| 3.84 | -16.00 | 5.42 | -16.00 | -14.71 | 94.33 | -66.50 | 108.71 | 0.9380 | 234.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.59 | -13.92 | 94.80 | -66.03 | 108.01 | 0.9341 | -402.0 | -345.5 | |
| 8.49 | -16.00 | 12.51 | -16.00 | -15.28 | 93.56 | -67.27 | 109.12 | 0.9431 | 262.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -13.02 | 94.91 | -65.92 | 107.09 | 0.9322 | -149.0 | -127.7 | |
| 0.00 | 0.80 | 0.00 | 1.08 | -12.79 | 94.95 | -65.88 | 106.86 | 0.9316 | -203.0 | -200.0 | |
| 0.00 | 7.06 | 0.00 | 9.42 | -12.24 | 95.07 | -65.75 | 106.31 | 0.9300 | -13.0 | -115.8 | |
| 2.05 | -16.00 | 3.14 | -16.00 | -15.45 | 92.69 | -68.13 | 109.09 | 0.9479 | -422.9 | 999999 | |
| 1.52 | -16.00 | 2.24 | -16.00 | -13.83 | 93.17 | -67.66 | 107.52 | 0.9433 | -617.9 | 999999 | |
| 1.61 | -16.00 | 2.39 | -16.00 | -13.94 | 93.02 | -67.81 | 107.60 | 0.9443 | -589.8 | 999999 | |
| 11.08 | 56.99 | 15.73 | 80.43 | -12.28 | 93.64 | -67.19 | 106.02 | 0.9386 | -410.9 | -255.3 | |
| 45.91 | -16.00 | 72.45 | -16.00 | -14.83 | 92.00 | -68.82 | 108.29 | 0.9507 | -350.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -13.58 | 90.52 | -70.31 | 106.67 | 0.9567 | -35.0 | -91.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
