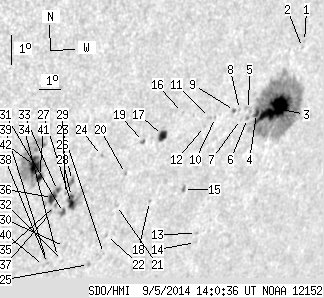

SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.27 | 390.95 | 63.04 | 313.06 | -14.65 | 207.35 | 47.07 | 244.57 | 0.7845 | 63.3 | 28.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.68 | -12.08 | 211.44 | 51.16 | 249.50 | 0.8154 | -346.0 | -232.1 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -12.26 | 211.39 | 51.11 | 249.27 | 0.8155 | -309.0 | -209.0 | |
| 35.81 | 227.01 | 30.41 | 193.17 | -14.13 | 210.60 | 50.32 | 246.79 | 0.8143 | 934.2 | 218.7 | |
| 3.21 | -3.00 | 2.68 | -3.00 | -14.20 | 209.69 | 49.42 | 246.33 | 0.8061 | 877.6 | 999999 | |
| 0.00 | 4.20 | 0.00 | 3.46 | -14.03 | 209.26 | 48.98 | 246.35 | 0.8014 | 588.0 | 589.0 | |
| 0.00 | 1.43 | 0.00 | 1.18 | -14.32 | 209.30 | 49.02 | 246.02 | 0.8028 | 833.0 | 744.2 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -14.32 | 208.96 | 48.69 | 245.88 | 0.7996 | 377.0 | 407.1 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -13.98 | 208.82 | 48.54 | 246.21 | 0.7970 | 504.0 | 478.5 | |
| 0.63 | 1.70 | 0.51 | 1.38 | -13.99 | 208.58 | 48.31 | 246.10 | 0.7948 | 689.0 | 596.6 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -14.14 | 207.74 | 47.46 | 245.56 | 0.7871 | 689.0 | 572.9 | |
| 0.00 | 1.43 | 0.00 | 1.14 | -14.11 | 207.45 | 47.18 | 245.46 | 0.7842 | 586.0 | 599.1 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -14.38 | 207.30 | 47.02 | 245.06 | 0.7838 | 585.0 | 529.8 | |
| 0.00 | 1.34 | 0.00 | 1.11 | -17.94 | 208.05 | 47.77 | 241.28 | 0.8055 | 562.0 | 466.6 | |
| 0.00 | 1.16 | 0.00 | 0.97 | -18.25 | 208.11 | 47.84 | 240.96 | 0.8074 | 371.0 | 288.1 | |
| 0.71 | 2.05 | 0.57 | 1.65 | -16.39 | 206.92 | 46.65 | 242.52 | 0.7885 | 611.4 | 478.1 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -13.82 | 206.15 | 45.87 | 245.20 | 0.7701 | -416.0 | -440.9 | |
| 5.98 | 9.20 | 4.59 | 7.06 | -14.49 | 205.43 | 45.15 | 244.04 | 0.7657 | -541.6 | -305.7 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -16.64 | 205.45 | 45.17 | 241.49 | 0.7756 | -329.0 | -338.9 | |
| 0.71 | 2.14 | 0.54 | 1.62 | -14.61 | 204.62 | 44.34 | 243.49 | 0.7581 | 681.6 | 589.9 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -15.60 | 204.09 | 43.82 | 242.02 | 0.7574 | -419.0 | -434.2 | |
| 0.00 | 1.61 | 0.00 | 1.22 | -16.63 | 203.98 | 43.71 | 240.73 | 0.7613 | -571.0 | -412.0 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -17.61 | 203.83 | 43.56 | 239.49 | 0.7646 | -548.0 | -438.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -18.21 | 203.88 | 43.61 | 238.82 | 0.7681 | -364.0 | -363.7 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -14.91 | 202.88 | 42.60 | 242.21 | 0.7417 | -268.0 | -224.6 | |
| 0.00 | 1.61 | 0.00 | 1.23 | -18.52 | 203.32 | 43.05 | 238.14 | 0.7644 | -496.0 | -406.6 | |
| 0.89 | 5.09 | 0.65 | 3.70 | -15.62 | 201.82 | 41.55 | 240.74 | 0.7345 | -539.7 | -433.3 | |
| 3.75 | 16.88 | 2.75 | 12.39 | -16.39 | 201.98 | 41.70 | 239.90 | 0.7400 | -770.7 | -296.0 | |
| 0.89 | -27.00 | 0.65 | -27.00 | -16.15 | 201.92 | 41.64 | 240.15 | 0.7382 | -645.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -16.03 | 201.63 | 41.36 | 240.13 | 0.7346 | -561.0 | -541.8 | |
| 0.00 | 2.32 | 0.00 | 1.73 | -17.81 | 202.07 | 41.80 | 238.25 | 0.7485 | -249.0 | -280.9 | |
| 1.52 | 3.39 | 1.11 | 2.48 | -16.66 | 201.71 | 41.44 | 239.41 | 0.7388 | -621.6 | -532.4 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -18.28 | 202.12 | 41.85 | 237.72 | 0.7516 | -423.0 | -397.9 | |
| 1.34 | 12.86 | 0.97 | 9.28 | -15.90 | 201.26 | 40.99 | 240.07 | 0.7302 | -831.7 | -664.3 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -18.12 | 201.86 | 41.59 | 237.75 | 0.7482 | -692.0 | -627.6 | |
| 0.00 | 1.34 | 0.00 | 0.97 | -16.39 | 201.30 | 41.03 | 239.50 | 0.7332 | -644.0 | -540.9 | |
| 5.54 | -33.00 | 4.00 | -33.00 | -16.11 | 201.11 | 40.83 | 239.72 | 0.7297 | -909.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.36 | -16.61 | 201.15 | 40.88 | 239.14 | 0.7329 | -616.0 | -489.9 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -18.32 | 201.49 | 41.22 | 237.29 | 0.7457 | -499.0 | -452.3 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -18.18 | 201.41 | 41.14 | 237.41 | 0.7441 | -702.0 | -502.2 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -18.37 | 201.34 | 41.07 | 237.14 | 0.7445 | -509.0 | -431.2 | |
| 3.84 | 76.89 | 2.73 | 54.04 | -15.40 | 200.40 | 40.12 | 240.17 | 0.7185 | -623.7 | -514.2 | |
| 15.45 | -41.00 | 10.88 | -41.00 | -14.99 | 200.10 | 39.82 | 240.51 | 0.7130 | -918.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
