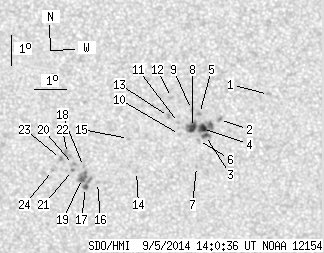

SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.63 | 75.64 | 8.58 | 41.52 | -18.20 | 159.24 | -1.04 | 177.86 | 0.4326 | 284.4 | 111.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.02 | -16.56 | 162.94 | 2.67 | 186.32 | 0.4073 | 808.0 | 726.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -17.38 | 161.40 | 1.13 | 182.58 | 0.4185 | 1016.0 | 837.5 | |
| 1.88 | 29.02 | 1.03 | 15.85 | -17.91 | 160.96 | 0.69 | 181.54 | 0.4267 | 764.2 | 755.1 | |
| 4.91 | -3.00 | 2.68 | -3.00 | -17.67 | 160.86 | 0.59 | 181.33 | 0.4229 | 1047.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -17.17 | 160.77 | 0.49 | 181.14 | 0.4150 | 926.0 | 821.9 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -18.07 | 160.74 | 0.46 | 181.03 | 0.4292 | 634.0 | 517.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.95 | 160.68 | 0.40 | 180.86 | 0.4430 | 721.0 | 599.7 | |
| 5.09 | -3.00 | 2.78 | -3.00 | -17.64 | 160.55 | 0.27 | 180.62 | 0.4223 | 998.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.04 | 160.52 | 0.24 | 180.56 | 0.4128 | 944.0 | 792.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.87 | 160.13 | -0.14 | 179.69 | 0.4260 | 535.0 | 389.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.47 | 160.10 | -0.17 | 179.61 | 0.4196 | 660.0 | 546.2 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -16.64 | 159.88 | -0.39 | 179.08 | 0.4064 | 748.0 | 588.0 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -17.27 | 159.79 | -0.49 | 178.88 | 0.4165 | 845.0 | 742.3 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.12 | 158.76 | -1.52 | 176.77 | 0.4463 | 675.0 | 573.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.01 | 158.51 | -1.76 | 176.08 | 0.4291 | 491.0 | 431.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -19.49 | 157.50 | -2.77 | 174.21 | 0.4537 | -647.0 | -420.7 | |
| 1.25 | 15.36 | 0.70 | 8.53 | -19.66 | 157.11 | -3.16 | 173.45 | 0.4570 | -809.6 | -754.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.95 | 157.06 | -3.21 | 173.15 | 0.4461 | -768.0 | -580.2 | |
| 2.50 | -17.00 | 1.39 | -17.00 | -19.36 | 157.02 | -3.25 | 173.18 | 0.4524 | -969.6 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.33 | -18.89 | 156.74 | -3.53 | 172.46 | 0.4457 | -965.0 | -828.9 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.09 | 156.71 | -3.57 | 172.44 | 0.4489 | -909.0 | -829.9 | |
| 0.00 | 3.75 | 0.00 | 2.07 | -18.52 | 156.56 | -3.71 | 171.95 | 0.4403 | -845.0 | -824.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.69 | 156.33 | -3.94 | 171.52 | 0.4435 | -835.0 | -724.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.10 | 156.07 | -4.21 | 171.11 | 0.4504 | -644.0 | -404.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
