SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.71 | 234.06 | 49.11 | 223.29 | -19.58 | 107.23 | -53.04 | 118.20 | 0.8563 | 516.2 | 219.3 | |
|
previous
or next observation for the same group /

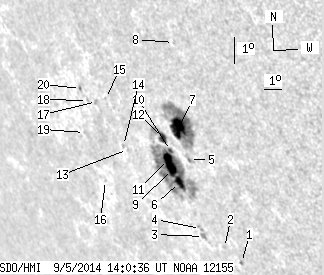

back to the solar disc SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 1.10 | -23.08 | 109.14 | -51.13 | 122.80 | 0.8542 | -197.0 | -247.3 | |
| 0.00 | 1.61 | 0.00 | 1.54 | -22.64 | 108.48 | -51.79 | 122.03 | 0.8575 | 342.0 | 320.7 | |
| 0.00 | 2.95 | 0.00 | 2.88 | -22.36 | 107.50 | -52.77 | 121.31 | 0.8639 | 572.0 | 492.4 | |
| 0.00 | 2.59 | 0.00 | 2.52 | -22.09 | 107.49 | -52.79 | 121.01 | 0.8630 | 450.0 | 438.9 | |
| 0.00 | 3.57 | 0.00 | 3.34 | -19.70 | 108.10 | -52.17 | 118.70 | 0.8499 | 474.0 | 454.6 | |
| 7.14 | 135.03 | 6.90 | 130.44 | -20.57 | 107.14 | -53.13 | 119.24 | 0.8604 | 570.7 | 125.5 | |
| 20.27 | 77.96 | 18.79 | 71.94 | -18.65 | 108.00 | -52.27 | 117.51 | 0.8470 | 748.5 | 418.4 | |
| 0.00 | 0.80 | 0.00 | 0.71 | -15.77 | 108.89 | -51.38 | 114.66 | 0.8295 | 207.0 | 273.8 | |
| 9.47 | -6.00 | 9.15 | -6.00 | -20.16 | 106.97 | -53.30 | 118.72 | 0.8603 | 624.1 | 999999 | |
| 1.25 | -6.00 | 1.19 | -6.00 | -19.50 | 107.19 | -53.09 | 118.10 | 0.8564 | 592.9 | 999999 | |
| 8.13 | -6.00 | 7.83 | -6.00 | -19.83 | 106.86 | -53.41 | 118.33 | 0.8601 | 631.0 | 999999 | |
| 5.00 | -6.00 | 4.78 | -6.00 | -19.09 | 106.95 | -53.33 | 117.56 | 0.8570 | 551.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.64 | -19.73 | 104.69 | -55.59 | 117.36 | 0.8763 | 548.0 | 534.1 | |
| 0.00 | 1.16 | 0.00 | 1.19 | -19.62 | 104.52 | -55.76 | 117.18 | 0.8772 | 465.0 | 431.6 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -18.09 | 104.27 | -56.01 | 115.44 | 0.8747 | -216.0 | -212.7 | |
| 0.00 | 0.98 | 0.00 | 1.08 | -20.99 | 102.67 | -57.60 | 117.95 | 0.8943 | -379.0 | -305.9 | |
| 0.00 | 2.05 | 0.00 | 2.13 | -18.25 | 103.67 | -56.61 | 115.40 | 0.8797 | -386.0 | -268.0 | |
| 0.00 | 1.16 | 0.00 | 1.22 | -18.28 | 103.12 | -57.15 | 115.24 | 0.8838 | -351.0 | -320.2 | |
| 0.00 | 0.80 | 0.00 | 0.88 | -19.43 | 102.32 | -57.96 | 116.18 | 0.8926 | -202.0 | -206.4 | |
| 0.45 | 1.34 | 0.47 | 1.41 | -17.91 | 102.90 | -57.38 | 114.76 | 0.8845 | -506.2 | -472.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
